A good PCB layout for the NB7HQ14MMNHTBG should include a solid ground plane, short and direct signal paths, and decoupling capacitors placed close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
Proper termination for high-speed signals on the NB7HQ14MMNHTBG involves using a combination of series and parallel termination resistors, as well as AC coupling capacitors. The datasheet provides guidelines for termination, but it's essential to simulate and validate the termination scheme using tools like IBIS or SPICE models.
The NB7HQ14MMNHTBG has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink attached to the exposed pad. Additionally, the PCB should be designed to dissipate heat efficiently, and the device should be operated within the recommended power dissipation limits.
The NB7HQ14MMNHTBG requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is VCC, then VCCA, and finally the input signals. The power-down sequence should be reversed. It's essential to follow the recommended power sequencing to prevent damage to the device or system malfunction.
The NB7HQ14MMNHTBG has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Additionally, the PCB should be designed with ESD protection in mind, including the use of ESD protection devices and ESD-safe connectors.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
NB7HQ14MMNHTBG Overview

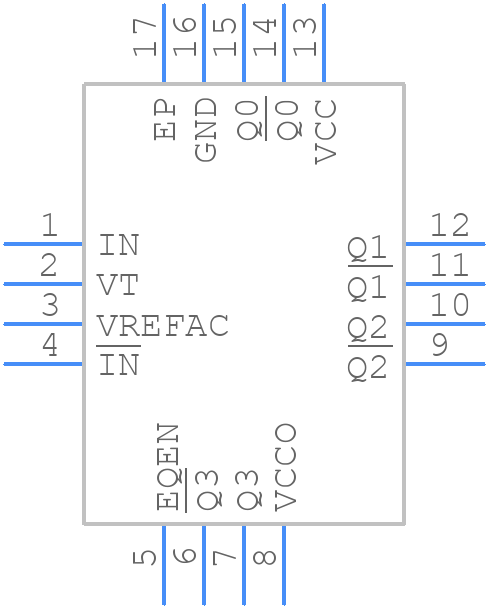

Use the download button to access the NB7HQ14MMNHTBG schematic symbol, PCB footprint, and 3D model.
