A good PCB layout for the NB7L585MNG involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and power-down of the NB7L585MNG, it's recommended to follow a slow power ramp-up and ramp-down sequence, with a minimum rise and fall time of 1 ms. Additionally, the device should be powered up and down in the following sequence: VCC, then VIN, and then the clock signal.
The NB7L585MNG has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device's junction temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing the device's power consumption.
To troubleshoot issues with the NB7L585MNG, start by checking the power supply voltage, clock signal, and input/output signals. Use an oscilloscope to verify the signal integrity and check for any signs of noise or distortion. Also, ensure that the device is properly powered up and down, and that the PCB layout is optimal.
To minimize EMI and RFI issues with the NB7L585MNG, it's recommended to use a shielded enclosure, keep the device away from other noise-sensitive components, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure that the PCB layout is optimized for minimal radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7L585MNG Overview

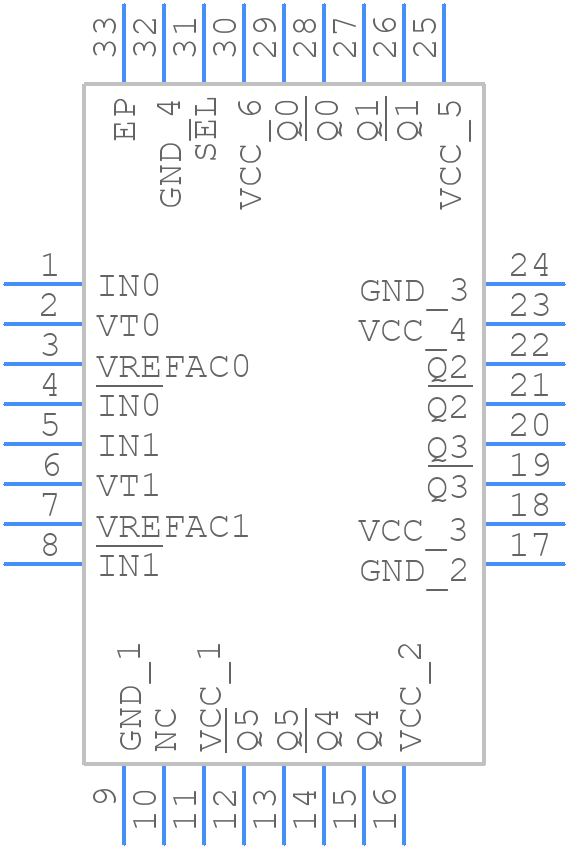

Use the download button to access the NB7L585MNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7L5,
or try a keyword search, such as Clock Drivers
