A good PCB layout for the NB7L585MNR4G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper power-up and power-down of the NB7L585MNR4G, it is recommended to follow a controlled power-up sequence, where the input voltage is ramped up slowly (e.g., 1-2 ms) to prevent inrush currents. Similarly, during power-down, the input voltage should be ramped down slowly to prevent voltage overshoots.
The NB7L585MNR4G is rated for operation from -40°C to 125°C, but it is recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
The NB7L585MNR4G has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
The recommended input capacitance value for the NB7L585MNR4G is 10-22 μF, depending on the specific application and operating frequency. A larger input capacitance can help improve the device's power supply rejection ratio (PSRR).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7L585MNR4G Overview

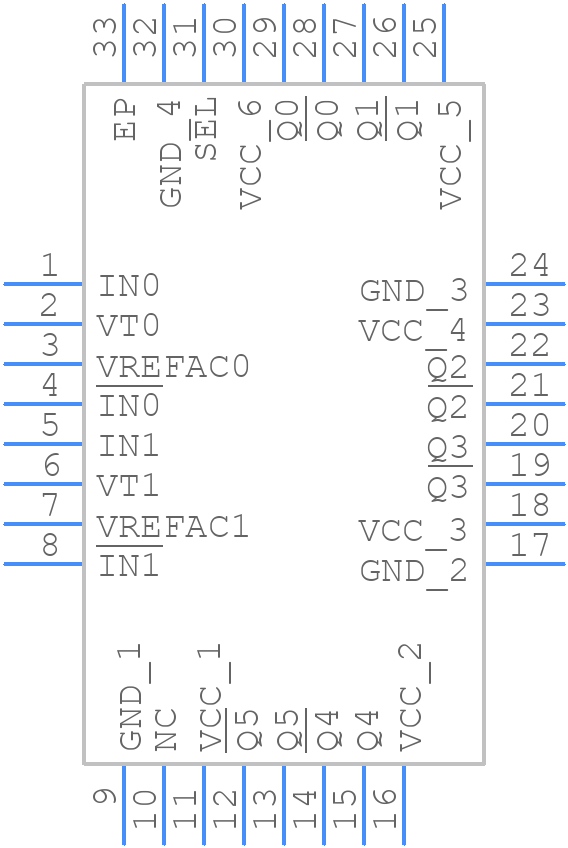

Use the download button to access the NB7L585MNR4G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7L5,
or try a keyword search, such as Clock Drivers
