Description:Maximum Data Rate > 10Gbps; Maximum Clock Frequency > 7GHz; Random Clock Jitter < 0.5ps RMS; 30ps typical output rise & fall times; Differential CML Outputs; 2.5V or 3.3V Operating Voltage; Internal 50-ohm Input Termination; Industrial Temperature Range
ALSO OPERATES IN SUPPLY VOLTAGE 3 TO 3.6V WITH 3.3V NOMINAL
Analog IC - Other Type:
CROSS POINT SWITCH
JESD-30 Code:
S-XQCC-N16
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
2.625 V
Supply Voltage-Min (Vsup):
2.375 V
Supply Voltage-Nom (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Gold/Palladium (Ni/Au/Pd)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
NB7L72MMNG Frequently Asked Questions (FAQs)
A good PCB layout for the NB7L72MMNG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the VEE pin to a stable voltage sink. The recommended bias voltage is 3.3V or 2.5V, depending on the application. Ensure the input voltage is within the recommended range and the output is properly terminated.
The NB7L72MMNG can operate up to 12.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, the device can operate up to 10 GHz with minimal signal degradation.
The NB7L72MMNG has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink if the device is expected to dissipate significant power.
The NB7L72MMNG has internal ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded to prevent static discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7L72MMNG Overview

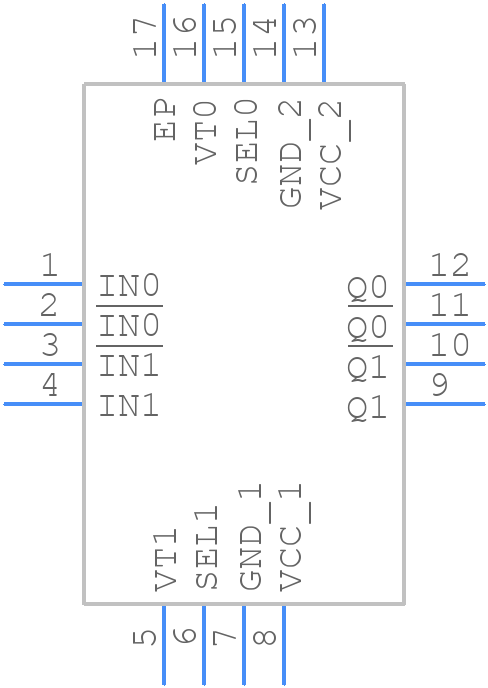

Use the download button to access the NB7L72MMNG schematic symbol, PCB footprint, and 3D model.
