Description:Maximum Data Rate > 10Gbps; Maximum Clock Frequency > 7GHz; Random Clock Jitter < 0.5ps RMS; 30ps typical output rise & fall times; Differential CML Outputs; 2.5V or 3.3V Operating Voltage; Internal 50-ohm Input Termination; Industrial Temperature Range
ALSO OPERATES IN SUPPLY VOLTAGE 3 TO 3.6V WITH 3.3V NOMINAL
Analog IC - Other Type:
CROSS POINT SWITCH
JESD-30 Code:
S-XQCC-N16
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
2.625 V
Supply Voltage-Min (Vsup):
2.375 V
Supply Voltage-Nom (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Gold/Palladium (Ni/Au/Pd)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
NB7L72MMNHTBG Frequently Asked Questions (FAQs)
A good PCB layout for the NB7L72MMNHTBG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. The input voltage (VIN) should be within the recommended range (1.71V to 3.63V). Additionally, ensure that the output load is within the recommended range (1kΩ to 10kΩ).
The recommended input capacitance for the NB7L72MMNHTBG is 0.1μF to 1μF, depending on the specific application and noise requirements. A larger input capacitance can help filter out high-frequency noise, but may also increase the startup time.
To handle thermal management, ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures or with high power dissipation. The maximum junction temperature (TJ) is 150°C.
The NB7L72MMNHTBG has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7L72MMNHTBG Overview

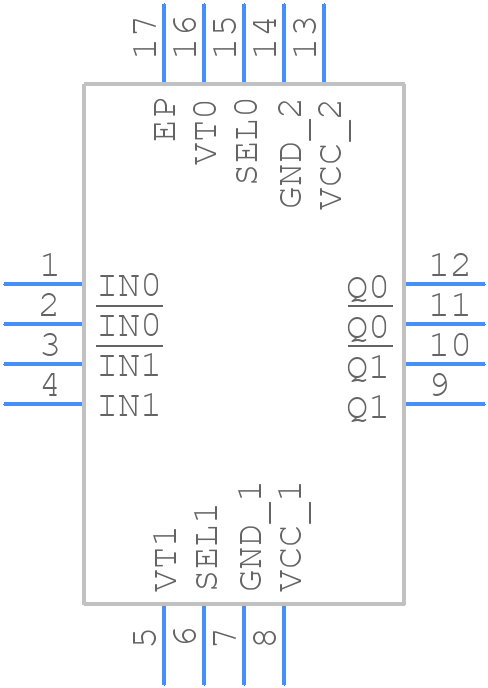

Use the download button to access the NB7L72MMNHTBG schematic symbol, PCB footprint, and 3D model.
