NB7L86AMNG - onsemi

Description: Maximum Input Clock Frequency > 8 GHz Typical; Maximum Data Input Rate > 8 Gb/s Typical; 165 ps Typical Propagation Delay; 40 ps Typical Rise and Fall Times; Selectable Swing PECL Output with Operating Range: VCC = 2.375 V to 3.465 V with VEE = 0 V; Selectable Swing NECL Output with NECL Inputs with Operating Range: VCC = 0 V with VEE = -2.375 V to -3.465 V; 50Ω Internal Input Termination Resistors; Selectable Output Level Select (0 V, 200 mV, 400 mV, 600 mV, or 800 mV Peak-to-Peak Output)

Download NB7L86AMNG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

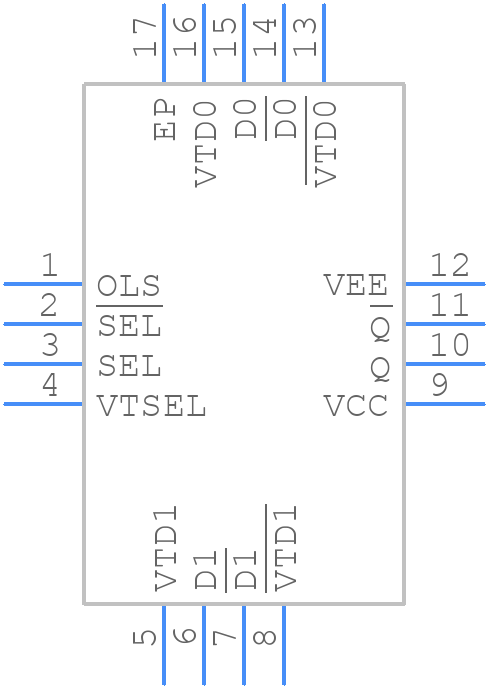

NB7L86AMNG - onsemi - PCB symbol
click to zoom
PCB Footprints
NB7L86AMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom
3D Models
NB7L86AMNG - onsemi - 3D model - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom

NB7L86AMNG Details

  • Manufacturer Part Number:

    NB7L86AMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-16

  • Manufacturer Package Code:

    485G-01

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2019-12-11

  • Manufacturer:

    onsemi

  • Family:

    7L

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOGIC CIRCUIT

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NB7L86AMNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB7L86AMNG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the VEE pin to a stable voltage sink. The recommended bias voltage is 3.3V or 5V, and the device can operate with a bias current of 10mA to 100mA.
  • The NB7L86AMNG can operate up to 1.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, the device can operate at frequencies up to 1.2 GHz with minimal signal degradation.
  • The NB7L86AMNG has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB. Ensure good airflow around the device to prevent overheating.
  • The NB7L86AMNG has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the PCB and components are properly grounded.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NB7L86AMNG Overview

Use the download button to access the NB7L86AMNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7L8, or try a keyword search, such as Other Logic ICs
