NB7L86AMNHTBG - onsemi

Description: Maximum Input Clock Frequency > 8 GHz Typical; Maximum Data Input Rate > 8 Gb/s Typical; 165 ps Typical Propagation Delay; 40 ps Typical Rise and Fall Times; Selectable Swing PECL Output with Operating Range: VCC = 2.375 V to 3.465 V with VEE = 0 V; Selectable Swing NECL Output with NECL Inputs with Operating Range: VCC = 0 V with VEE = -2.375 V to -3.465 V; 50Ω Internal Input Termination Resistors; Selectable Output Level Select (0 V, 200 mV, 400 mV, 600 mV, or 800 mV Peak-to-Peak Output)

Download NB7L86AMNHTBG Model

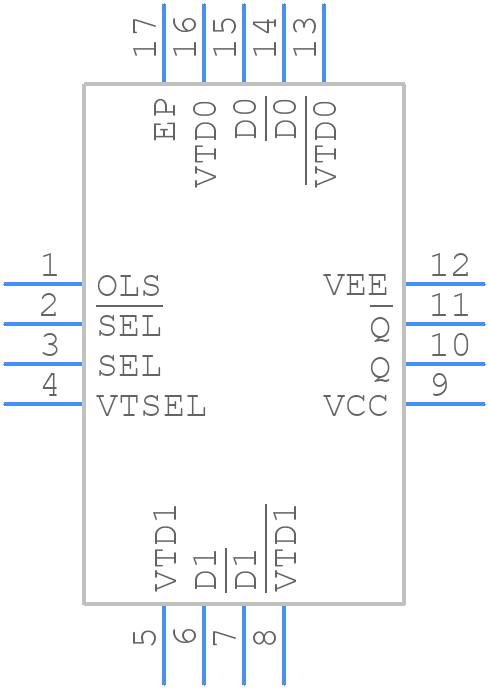

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB7L86AMNHTBG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom

NB7L86AMNHTBG Details

  • Manufacturer Part Number:

    NB7L86AMNHTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-16

  • Manufacturer Package Code:

    485G-01

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-12-11

  • Manufacturer:

    onsemi

  • Family:

    7L

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOGIC CIRCUIT

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NB7L86AMNHTBG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and crosstalk.
  • Use a slow ramp-up and ramp-down of the power supply voltage (VCC) to prevent latch-up and ensure proper device operation. A ramp rate of 1-2 ms is recommended.
  • The maximum capacitive load that can be driven by the output is 100 pF. Exceeding this value may cause oscillations or instability.
  • Use a heat sink with a thermal resistance of 10°C/W or lower. Ensure good thermal contact between the device and the heat sink. For high-power applications, consider using a fan or other cooling system.
  • Use a 50-ohm termination resistor in series with the input signal to minimize reflections and ensure signal integrity.
