A good PCB layout for the NB7L86MMNG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the VEE pin to a stable negative voltage source or ground. The input common-mode voltage should be within the recommended range, and the output should be terminated with a 50-ohm load to ensure optimal performance.
The NB7L86MMNG is specified to operate up to 1.5 GHz, but the actual operating frequency may be limited by the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
The NB7L86MMNG has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to keep the device away from heat sources. The thermal resistance of the package should be considered when designing the thermal management system.
The NB7L86MMNG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. The device should be handled in an ESD-protected environment, and ESD-sensitive devices should be grounded before handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7L86MMNG Overview

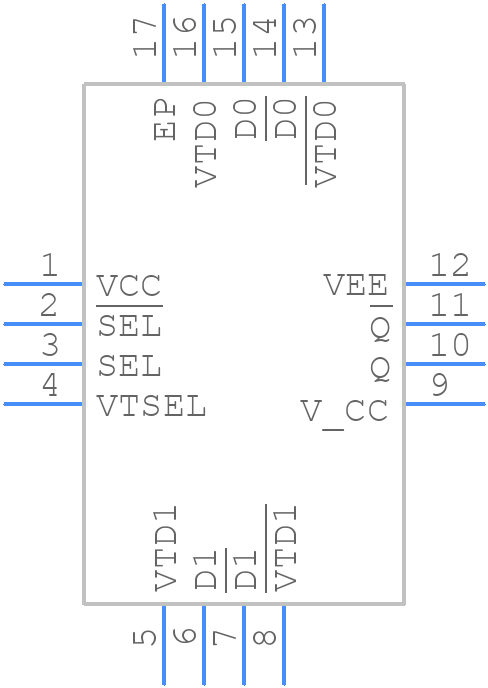

Use the download button to access the NB7L86MMNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7L8,
or try a keyword search, such as Other Logic ICs
