Description:Maximum Input Clock Frequency > 10 GHz, typical; Random Clock Jitter < 0.8ps RMS; 30ps Typical Rise and Fall Times ; Differential CML Outputs, 400mV peak-to-peak, typical; -40C to +85C Ambient Operating Temperature
A good PCB layout for the NB7V32MMNTXG should include a solid ground plane, short and direct traces for the input and output signals, and decoupling capacitors placed close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor (COUT) to minimize ringing and ensure stability.
To ensure proper power-up and power-down sequencing, it's recommended to follow the guidelines in the datasheet. Specifically, the input voltage (VIN) should be applied before the enable pin (EN) is asserted, and the EN pin should be de-asserted before VIN is removed. Additionally, a soft-start circuit can be used to limit the inrush current during power-up.
The NB7V32MMNTXG can tolerate a certain amount of input voltage ripple, but excessive ripple can affect the device's performance and stability. As a general guideline, the input voltage ripple should be kept below 10% of the nominal input voltage to ensure reliable operation.
While the datasheet recommends a specific output capacitor value and type, it's possible to use a different value or type. However, this may affect the device's performance, stability, and output voltage ripple. It's recommended to consult with onsemi's application engineers or perform thorough simulations and testing to ensure the desired performance is achieved with a non-recommended output capacitor.
To troubleshoot issues with the NB7V32MMNTXG, start by verifying the PCB layout and component values against the datasheet recommendations. Check for any signs of overheating, and ensure that the input and output voltages are within the specified ranges. Use an oscilloscope to monitor the output voltage and current, and look for any signs of oscillations or instability. If the issue persists, consult with onsemi's application engineers or seek assistance from a qualified engineer.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7V32MMNTXG Overview

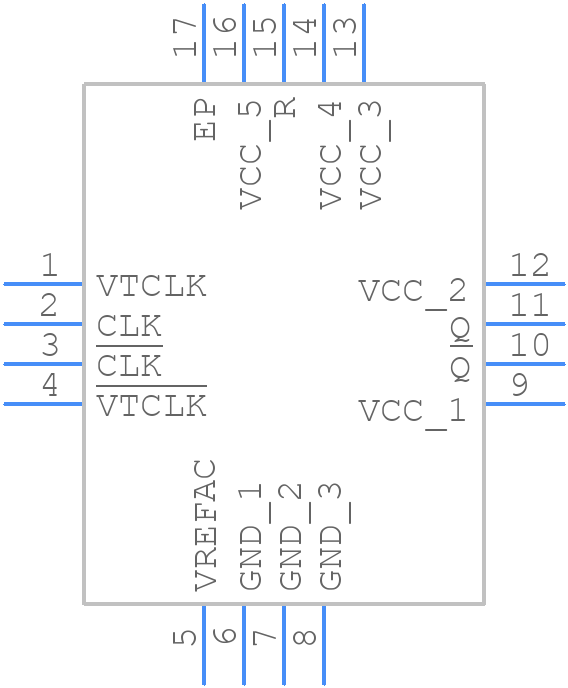

Use the download button to access the NB7V32MMNTXG schematic symbol, PCB footprint, and 3D model.
