NB7V33MMNHTBG - onsemi

Description: Maximum Input Clock Frequency > 10 GHz, typical; 260 ps Typical Propagation Delay; 35 ps Typical Rise and Fall Times; Differential CML Outputs, 400 mV peaktopeak, typical; Internal 50-ohm Input Termination Resistors; Random Clock Jitter < 0.8 ps RMS; 40C to +85C Ambient Operating Temperature

Download NB7V33MMNHTBG Model

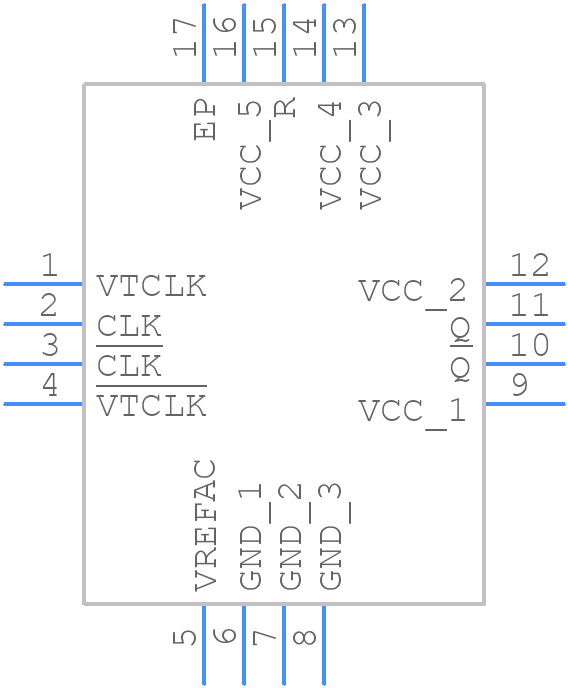

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB7V33MMNHTBG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom
3D Models
NB7V33MMNHTBG - onsemi  - 3D model - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom

NB7V33MMNHTBG Details

  • Manufacturer Part Number:

    NB7V33MMNHTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN16, 3x3, 0.5P

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    485G-01

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.9

  • Additional Feature:

    IT ALSO OPERATES AT 2.5V SUPPLY

  • Family:

    7V

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max Frequency@Nom-Sup:

    10000000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    115 mA

  • Prop. Delay@Nom-Sup:

    0.7 ns

  • Propagation Delay (tpd):

    0.7 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NB7V33MMNHTBG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB7V33MMNHTBG involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. It's also recommended to use a low-ESR capacitor for the output filter.
  • To ensure stability, make sure to follow the recommended operating conditions, use a suitable output capacitor, and avoid overloading the device. Also, ensure that the input voltage is within the recommended range, and the output is not overloaded or short-circuited.
  • The NB7V33MMNHTBG is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
  • Yes, the NB7V33MMNHTBG is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, consult the datasheet and onsemi's application notes for specific guidance.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check for overheating, short circuits, or overloading. Use an oscilloscope to check for noise, oscillations, or other anomalies. Consult the datasheet and onsemi's application notes for more guidance.
