NB7VQ14MMNHTBG - onsemi

Description: Input Data Rate > 14 Gb/s, Typical; Input Clock Frequency > 8 GHz, Typical; 165 ps Typical Propagation Delay; 30 ps Typical Rise and Fall Times; < 15 ps Maximum Output Skew; < 0.8 ps Maximum RMS Clock Jitter; < 10 ps pp of Data Dependent Jitter; Differential CML Outputs, 400 mV Peak-to-Peak, Typical; Selectable Input Equalization; Operating Range: VCC = 1.71 V to 3.6 V with GND = 0 V; Internal Input Termination Resistors, 50-ohm; -40°C to +85°C Ambient Operating Temperature

Download NB7VQ14MMNHTBG Model

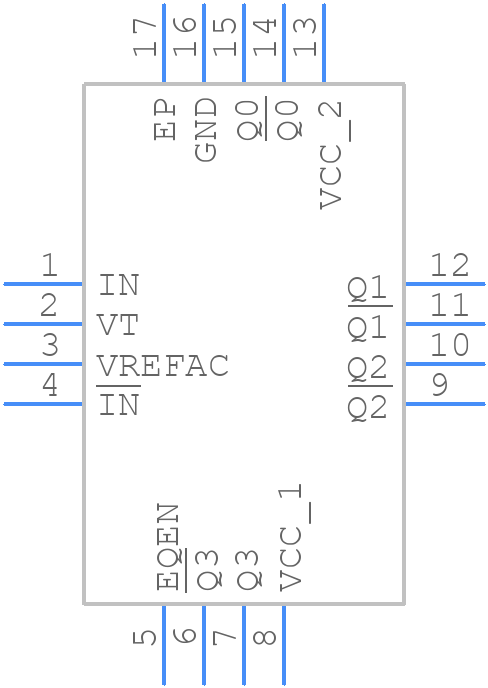

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB7VQ14MMNHTBG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom
3D Models
NB7VQ14MMNHTBG - onsemi  - 3D model - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom

NB7VQ14MMNHTBG Details

  • Manufacturer Part Number:

    NB7VQ14MMNHTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN16, 3x3, 0.5P

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    485G-01

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.5

  • Additional Feature:

    ALSO OPERATES AT 3.3 AND 2.5 V SUPPLY

  • Family:

    7VQ

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    210 mA

  • Prop. Delay@Nom-Sup:

    0.225 ns

  • Propagation Delay (tpd):

    0.225 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.015 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    7000 MHz

NB7VQ14MMNHTBG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB7VQ14MMNHTBG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Proper termination for the NB7VQ14MMNHTBG involves using a 50-ohm transmission line and terminating the signal lines with a 50-ohm resistor to match the impedance of the transmission line. Additionally, using a series resistor and a shunt capacitor can help to reduce reflections and improve signal integrity.
  • The NB7VQ14MMNHTBG has an operating temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • The NB7VQ14MMNHTBG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials.
  • The recommended power sequencing for the NB7VQ14MMNHTBG involves applying the power supply voltage (VCC) before the input signals. This ensures that the device is properly powered up before the input signals are applied.
