Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
The biasing network depends on the specific application and operating frequency. Qorvo provides a biasing network design guide in their application note AN-2171, which includes examples and calculations to help engineers choose the correct components.
The maximum operating temperature for NBB-312 is 150°C. As temperature increases, the device's performance may degrade, including reduced gain, increased noise figure, and decreased output power. Qorvo provides thermal derating guidelines in the datasheet to help engineers design for high-temperature applications.
Qorvo provides a troubleshooting guide in their application note AN-2171, which includes common issues, possible causes, and recommended solutions. Engineers can also contact Qorvo's technical support team for additional assistance.
Yes, NBB-312 is a sensitive device and requires proper ESD handling and storage precautions to prevent damage. Qorvo recommends following standard ESD handling procedures, such as using anti-static wrist straps, mats, and bags, and storing the devices in a dry, cool environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NBB-312 Overview

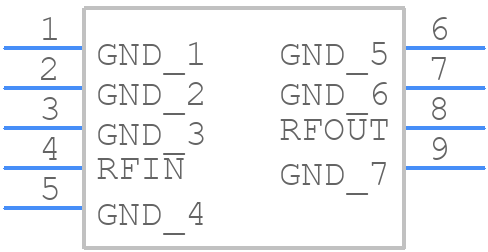

Use the download button to access the NBB-312 schematic symbol, PCB footprint, and 3D model.
