NBB-402-T1 - Qorvo

Description: DC - 8 GHz Cascadable Broadband GaAs MMIC Amplifier

Download NBB-402-T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

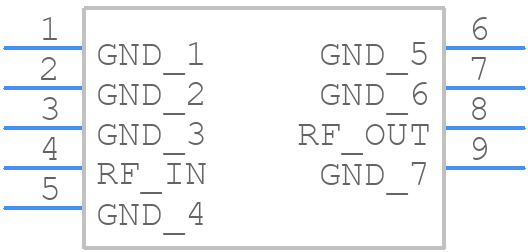

NBB-402-T1 - Qorvo - PCB symbol
click to zoom
PCB Footprints
NBB-402-T1 - Qorvo PCB footprint - Other - Other - NBB-402-T1-1
click to zoom
3D Models
NBB-402-T1 - Qorvo - 3D model - Other - NBB-402-T1-1
click to zoom

NBB-402-T1 Details

  • Manufacturer Part Number:

    NBB-402-T1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, GREEN, CERAMIC, BOWTIE, MPGA-9

  • Country Of Origin:

    USA

  • ECCN Code:

    5A991.G

  • HTS Code:

    8517.79.00.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.83

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Frequency-Max:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LGA9,3X3,40

  • Power Supplies:

    3.9 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Gold (Au)

  • VSWR-Max:

    1.8
