Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
Qorvo provides a matching network design guide in their application note AN-2172, which includes guidelines for selecting the correct components and layout for input and output matching networks to achieve optimal impedance matching and performance.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power output by 1 dB for every 10°C above 70°C to ensure reliable operation and prevent thermal damage.
Qorvo provides a troubleshooting guide in their application note AN-2173, which includes common issues, possible causes, and recommended solutions for troubleshooting the NBB-402.
Qorvo provides guidelines for soldering and assembly in their application note AN-2174, which includes recommendations for soldering temperature, time, and technique, as well as assembly and handling procedures to prevent damage and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NBB-402 Overview

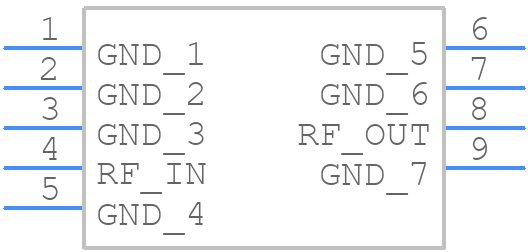

Use the download button to access the NBB-402 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NBB-4,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
