A good PCB layout for optimal thermal performance would involve placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. Additionally, using a thermal pad on the bottom of the device can help to dissipate heat more efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, provide adequate heat sinking, and ensure good airflow around the device. Additionally, consider using thermal interface materials and conformal coatings to protect the device from moisture and humidity.
The recommended soldering conditions for the NBC12430FAG are a peak temperature of 260°C, a dwell time of 10-30 seconds, and a soldering iron temperature of 350°C. It's also essential to use a solder with a melting point above 217°C to prevent damage to the device.
To handle ESD protection during handling and assembly, use an ESD wrist strap or mat, handle the device by the body or pins, avoid touching the pins or die, and store the device in an ESD-protective package. Additionally, consider using ESD-protective equipment and following proper ESD handling procedures.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to follow the recommended operating conditions to ensure the device operates within its specifications and to prevent damage or premature failure.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
NBC12430FAG Overview

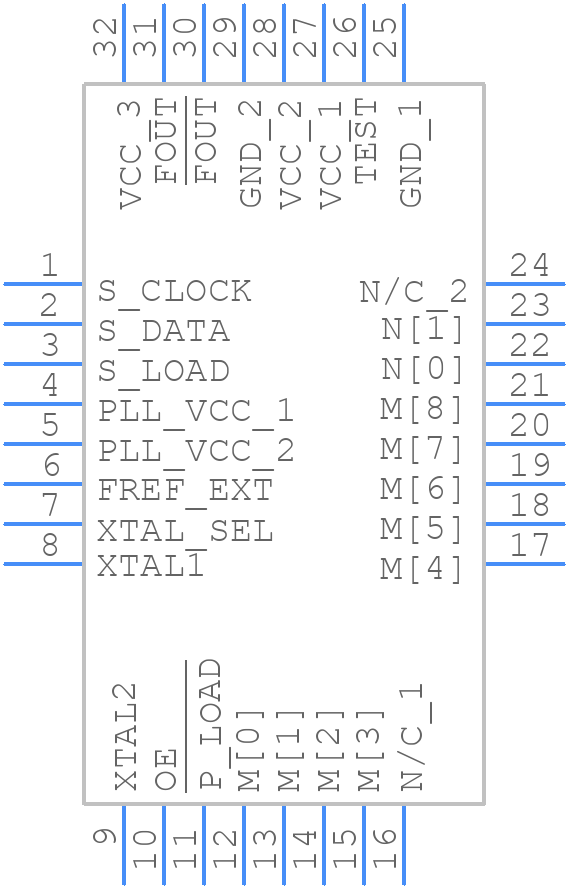

Use the download button to access the NBC12430FAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NBC12,
or try a keyword search, such as Clock Generators
