A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for airflow.
To ensure reliable operation in high-temperature environments, follow the recommended operating temperature range, use a heat sink or thermal pad, and consider using a thermal interface material to improve heat transfer.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's essential to ensure the device operates within the recommended temperature range.
While the NBC12430FNG is a high-performance device, it's essential to consult with onsemi's application engineers to determine its suitability for high-reliability or automotive applications, as additional testing and validation may be required.
To troubleshoot issues related to the internal voltage regulator, check the input voltage, output voltage, and current consumption. Ensure the device is properly decoupled, and the input voltage is within the recommended range. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NBC12430FNG Overview

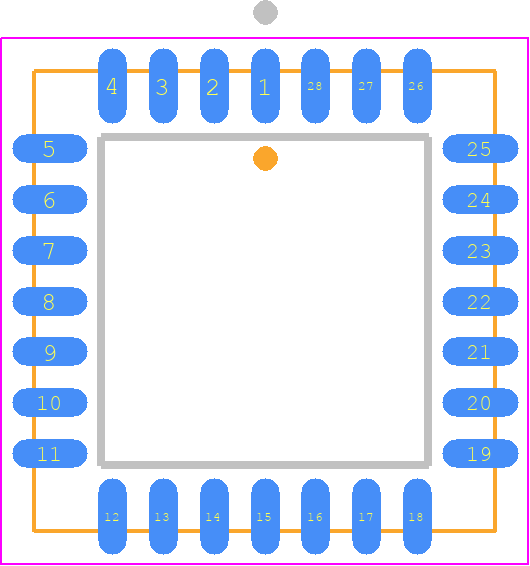

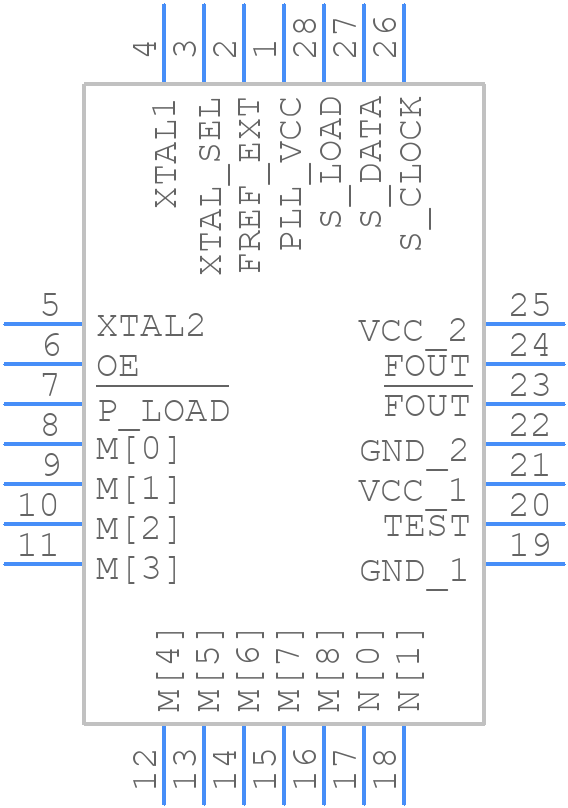

Use the download button to access the NBC12430FNG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NBC12,
or try a keyword search, such as Clock Generators
