NBC12439AMNG - onsemi

Description: Best-in-Class Output Jitter Performance, ±20 ps Peak-to-Peak; 50 MHz to 800 MHz Programmable Differential PECL Outputs; Fully Integrated Phase-Lock-Loop with Internal Loop Filter; Parallel Interface for Programming Counter and Output Dividers During Power-Up; Minimal Frequency Overshoot; Serial 3-Wire Programming Interface; Crystal Oscillator Interface; Operating Range: VCC = 3.135 V to 5.25 V; CMOS and TTL Compatible Control Inputs; Drop in replacement for Motorola MC12439; Power-Down of PECL Outputs (divi

Download NBC12439AMNG Model

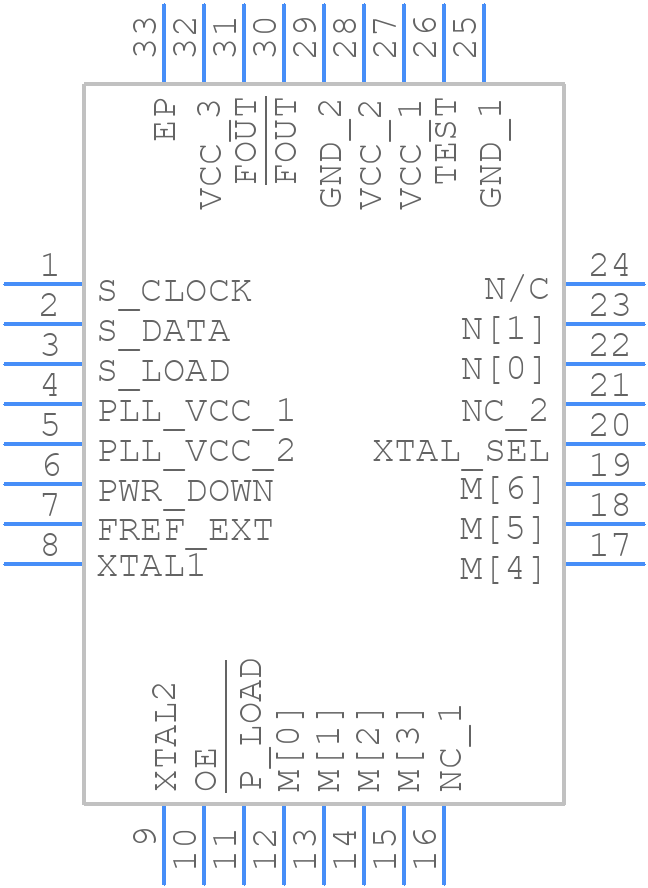

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NBC12439AMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBC12439AMNG+-+
click to zoom
3D Models
NBC12439AMNG - onsemi  - 3D model - Quad Flat No-Lead - NBC12439AMNG+-+
click to zoom

NBC12439AMNG Details

  • Manufacturer Part Number:

    NBC12439AMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN32, 5x5, 0.5P, 3.1x3.1EP

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    488AM

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6.4

  • Additional Feature:

    ALSO AVAILABLE WITH 5V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    800 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    20 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER
