NBM6123T60E12A7T0R - VICOR

Description: Bus Converter Module DC DC Converter 1 Output 12V 170A 36V - 60V Input, -40°C ~ 125°C

Download NBM6123T60E12A7T0R Model

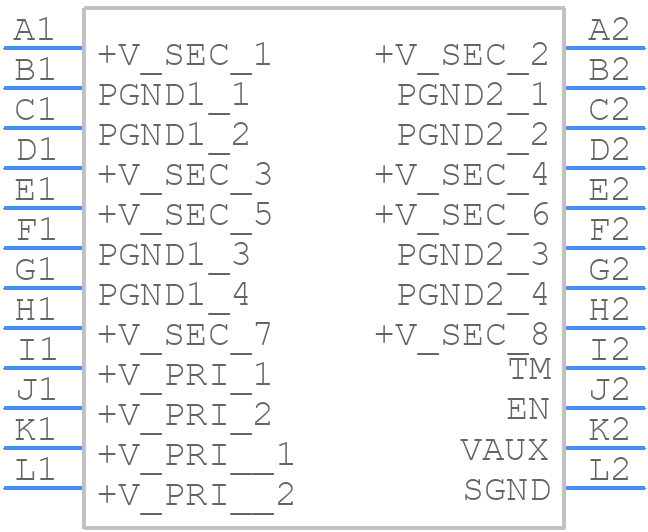

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

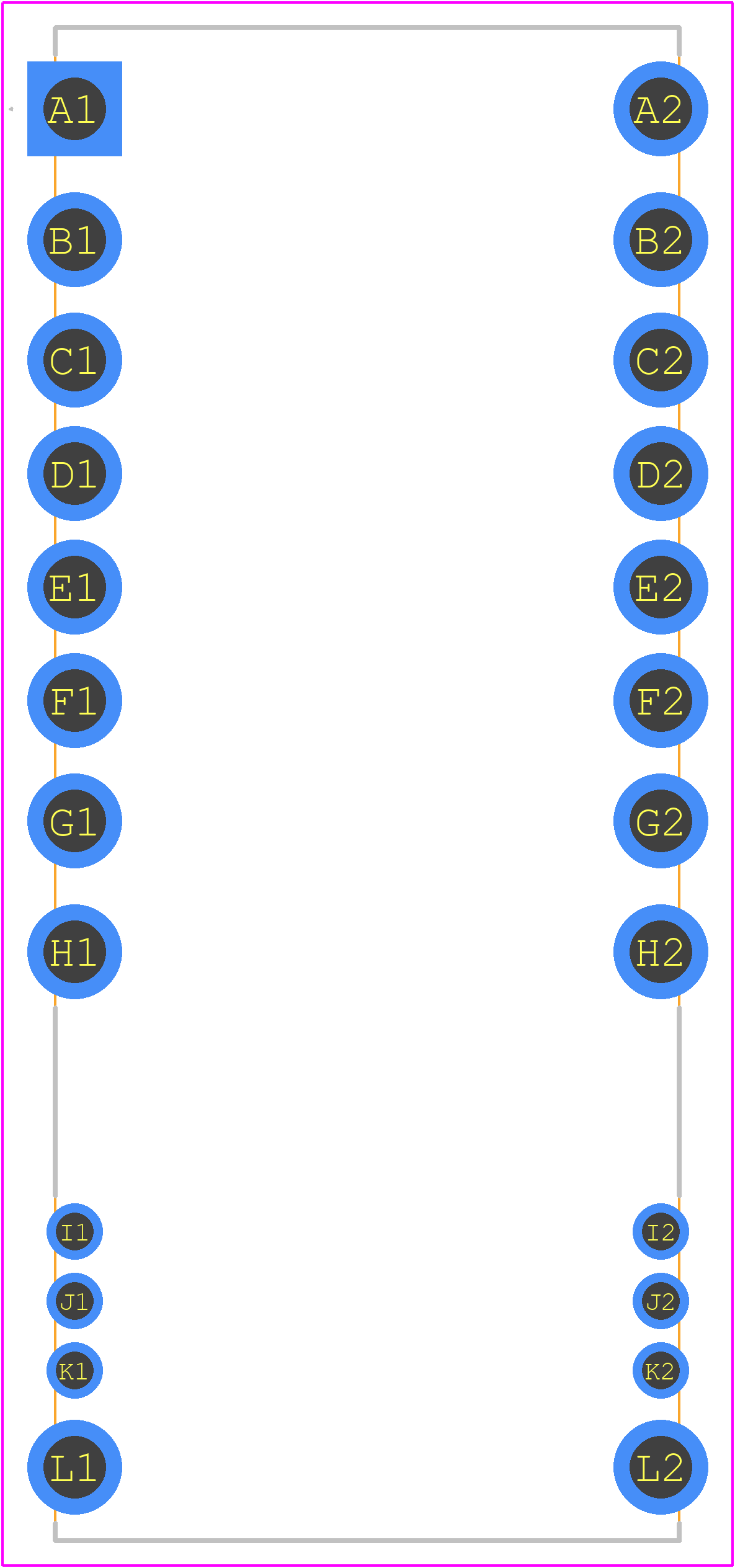

NBM6123T60E12A7T0R - VICOR PCB footprint - Other - Other - 6123 ChiP
click to zoom
3D Models
NBM6123T60E12A7T0R - VICOR  - 3D model - Other - 6123 ChiP
click to zoom

NBM6123T60E12A7T0R Details

  • Manufacturer Part Number:

    NBM6123T60E12A7T0R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Power

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • JESD-609 Code:

    e4

NBM6123T60E12A7T0R Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management application notes that recommend a specific PCB layout, thermal pad design, and heat sink attachment for optimal performance and thermal management of the NBM6123T60E12A7T0R.
  • To ensure reliable start-up and shutdown, Vicor recommends following a specific power-up and power-down sequence, which involves controlling the input voltage, enable pin, and output voltage. Additionally, it's essential to ensure that the input voltage is within the specified range and that the module is properly configured for the desired output voltage.
  • Vicor provides derating curves for the NBM6123T60E12A7T0R in their application notes, which show the reduction in output power and efficiency as a function of temperature. These curves can be used to determine the maximum output power and efficiency at a given temperature.
  • Vicor provides troubleshooting guides and application notes that outline common issues and their causes, as well as recommended solutions. For example, output voltage droop may be caused by inadequate input voltage or excessive output current, while oscillation may be caused by improper PCB layout or inadequate decoupling.
  • Vicor recommends using specific input and output filtering components, such as capacitors and inductors, to reduce electromagnetic interference (EMI). The recommended components and their values are provided in the application notes and design guides.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NBM6123T60E12A7T0R Overview

Use the download button to access the NBM6123T60E12A7T0R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NBM61, or try a keyword search, such as Power Supply Modules
