Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for the input and output, and a decoupling capacitor (e.g., 10uF) between the input and ground to reduce noise and ensure stable operation.
To ensure reliability in high-temperature applications, follow Panasonic's recommended derating guidelines, use a heat sink if necessary, and ensure good airflow around the component. Additionally, consider using a thermally conductive interface material (e.g., thermal tape or thermal grease) to improve heat transfer between the component and the heat sink.
While the datasheet does not specify a maximum surge current, Panasonic recommends limiting the surge current to 10 times the rated current (100mA) for a duration of 100ms or less to prevent damage to the component.
Yes, NC2D-DC100V can be used in a switching regulator application, but it's essential to ensure that the component is properly bypassed with a capacitor (e.g., 10uF) to reduce high-frequency noise and ringing. Additionally, consider using a snubber circuit to reduce voltage spikes and ringing during switching transitions.
To prevent moisture-related issues, store NC2D-DC100V in a dry, cool place (e.g., <30°C, <60% RH) in its original packaging or a sealed bag with desiccant. Avoid exposing the component to direct sunlight, high humidity, or extreme temperatures during storage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC2D-DC100V Overview

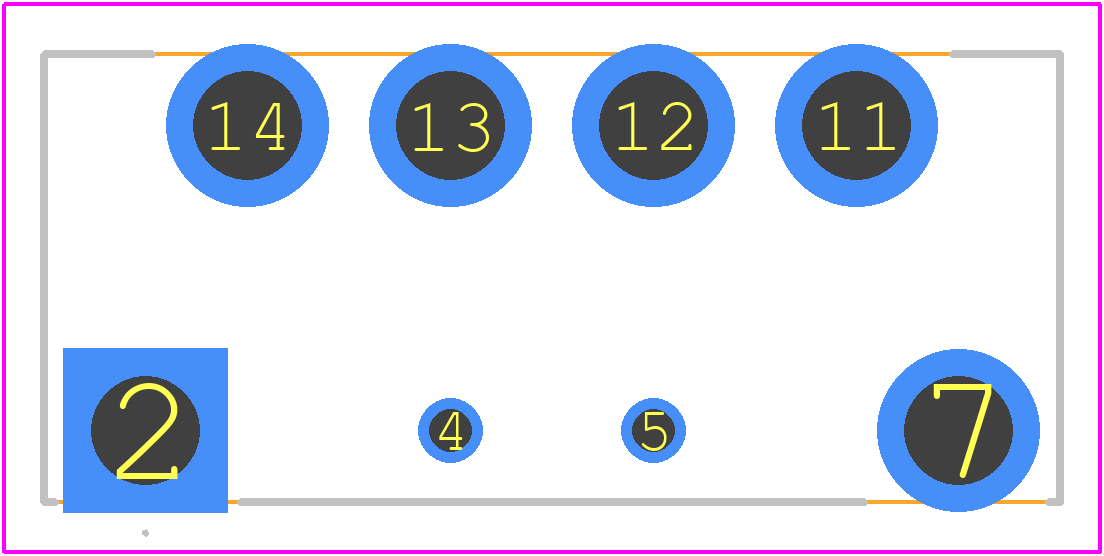

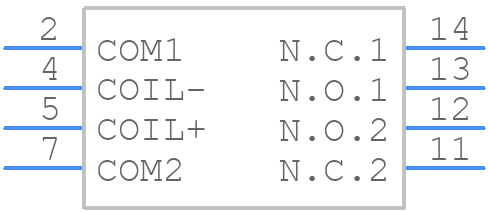

Use the download button to access the NC2D-DC100V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC2D-,
or try a keyword search, such as Power/Signal Relays
