NC2D-JP-DC3V - Panasonic

NC2D-JP-DC3V Frequently Asked Questions (FAQs)

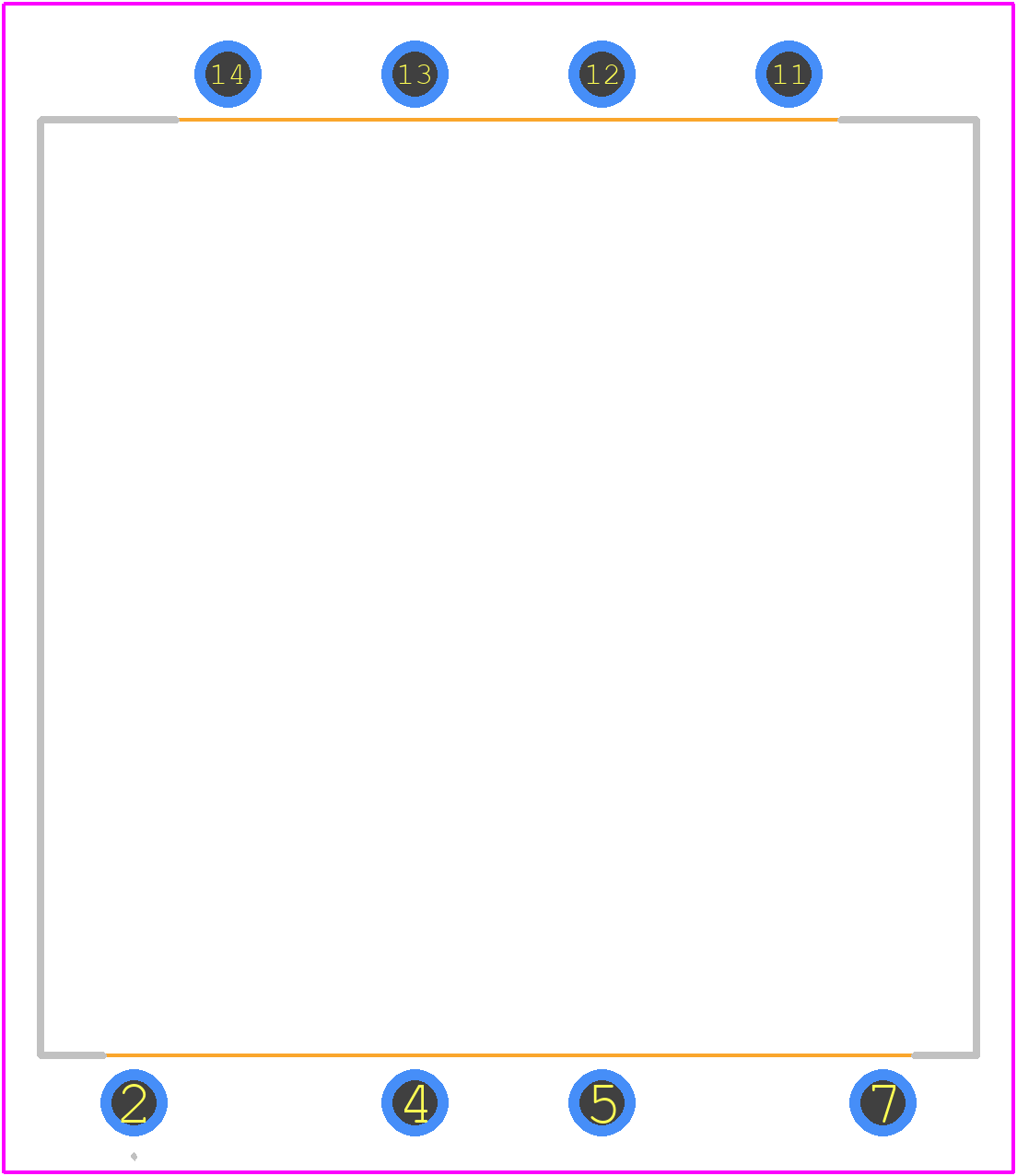

• What is the recommended PCB layout and land pattern for the NC2D-JP-DC3V?
  Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
• How do I handle the relay's high inrush current during switching?
  To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or an inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay with built-in inrush current limiting.
• What is the maximum allowable voltage drop across the relay contacts?
  The maximum allowable voltage drop across the relay contacts is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the voltage drop below 100 mV to ensure reliable contact performance and to prevent excessive heating.
• Can I use the NC2D-JP-DC3V in a high-temperature environment?
  While the relay is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management when operating in high-temperature environments. Ensure proper heat sinking and follow Panasonic's guidelines for high-temperature applications.
• How do I ensure the relay's electromagnetic compatibility (EMC) in my design?
  To ensure EMC, follow proper PCB layout and shielding techniques, and consider using a relay with built-in EMC features, such as a shielded coil or a relay with a low electromagnetic emission design.
