NC2D-JP-DC5V - Panasonic

Description: Transistor drive, 2 Form C/4 Form C, 5 A Slim power relays

Download NC2D-JP-DC5V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

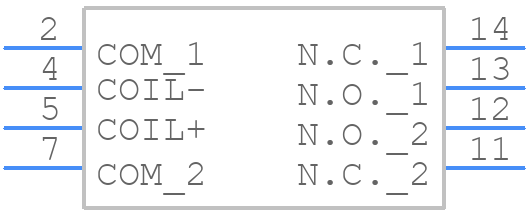

NC2D-JP-DC5V - Panasonic - PCB symbol
click to zoom
PCB Footprints

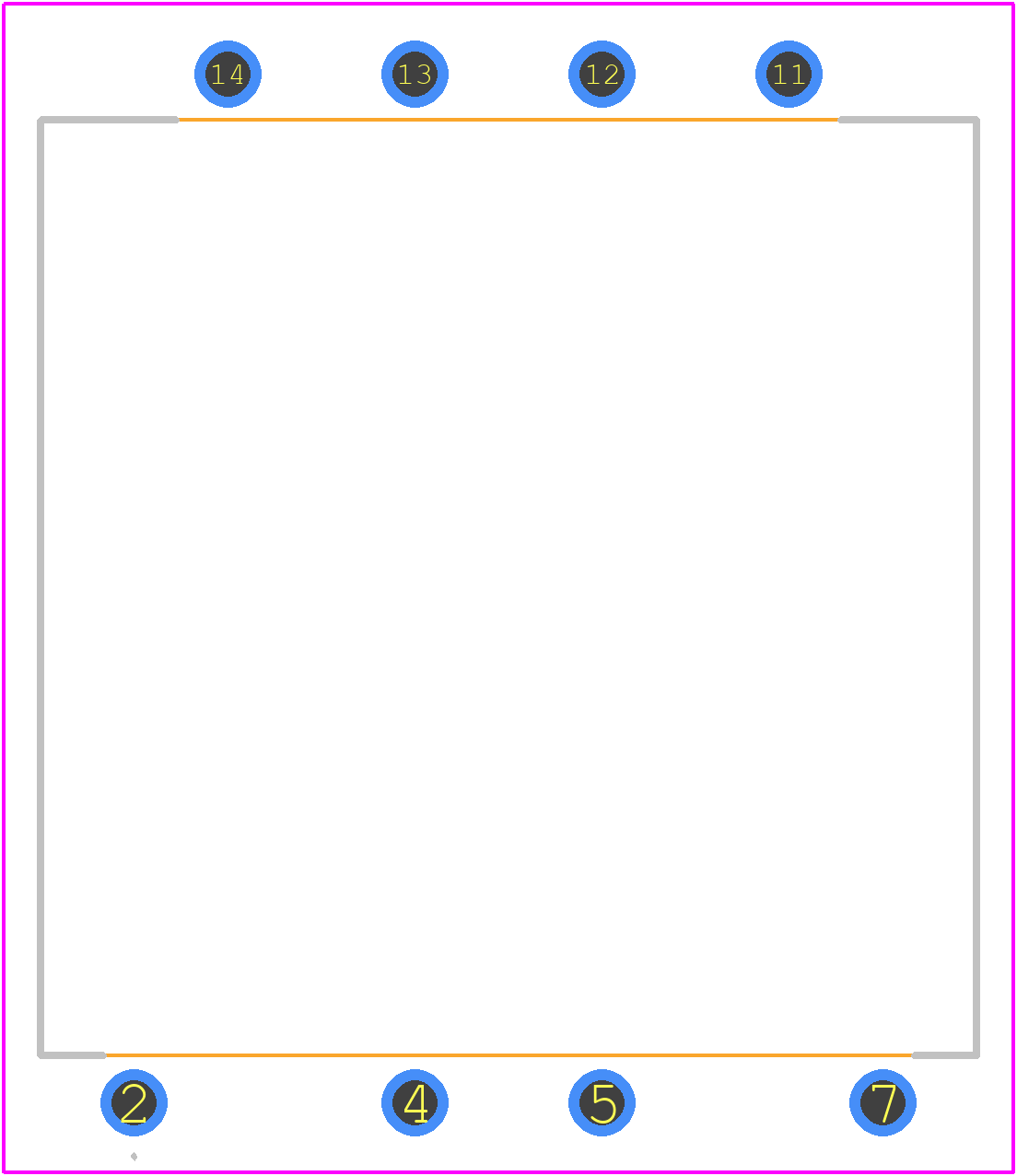

NC2D-JP-DC5V - Panasonic PCB footprint - Other - Other - NC2D-JP-DC3V-3
click to zoom
3D Models
NC2D-JP-DC5V - Panasonic - 3D model - Other - NC2D-JP-DC3V-3
click to zoom

NC2D-JP-DC5V Details

  • Manufacturer Part Number:

    NC2D-JP-DC5V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    25.4 mm

  • Body Height:

    10.9 mm

  • Body Length or Diameter:

    25.4 mm

  • Coil Current(DC)-Max:

    0.072 A

  • Coil Operate Voltage(DC):

    4 V

  • Coil Power:

    360 mW

  • Coil Release Voltage(DC):

    0.5 V

  • Coil Resistance:

    69.4 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    5A@250VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    25.4mm x 25.4mm x 10.9mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

NC2D-JP-DC5V Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the NC2D-JP-DC5V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
  • The NC2D-JP-DC5V relay is rated for operation up to 85°C. However, it's recommended to derate the relay's current handling capability at higher temperatures. Consult Panasonic's application notes for more information.
  • Panasonic provides a recommended PCB layout and land pattern for the NC2D-JP-DC5V relay in their application notes. It's essential to follow these guidelines to ensure reliable operation and prevent overheating.
  • The NC2D-JP-DC5V relay is not intended for use in safety-critical applications. If you need a relay for a safety-critical application, consider using a relay that meets the relevant safety standards, such as IEC 61508 or UL 508.
  • The expected lifespan of the NC2D-JP-DC5V relay is 100,000 to 200,000 cycles, depending on the operating conditions. However, this can vary depending on factors such as switching frequency, load, and environmental conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NC2D-JP-DC5V Overview

Use the download button to access the NC2D-JP-DC5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC2D-, or try a keyword search, such as Power/Signal Relays
