Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To handle the high inrush current, it's recommended to use a suitable current limiting resistor or an inrush current limiter in series with the relay coil. This will help prevent voltage drops and ensure reliable operation.
The relay is designed for 100,000 switching cycles at a minimum, but this can vary depending on the application and environmental conditions. It's essential to consult Panasonic's reliability data and perform your own testing to determine the relay's lifespan in your specific use case.
The relay is rated for operation up to 85°C, but it's essential to derate the relay's performance and consider the effects of high temperatures on the relay's lifespan and reliability. Consult Panasonic's temperature derating charts and application notes for more information.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing track lengths, and using shielding or filtering components as needed. Additionally, consult Panasonic's EMC guidelines and application notes for specific recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC2D-P-DC5V Overview

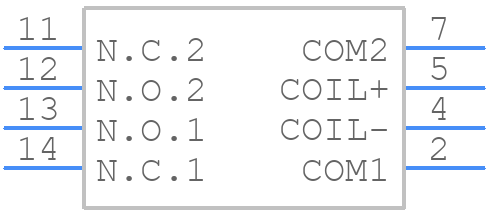

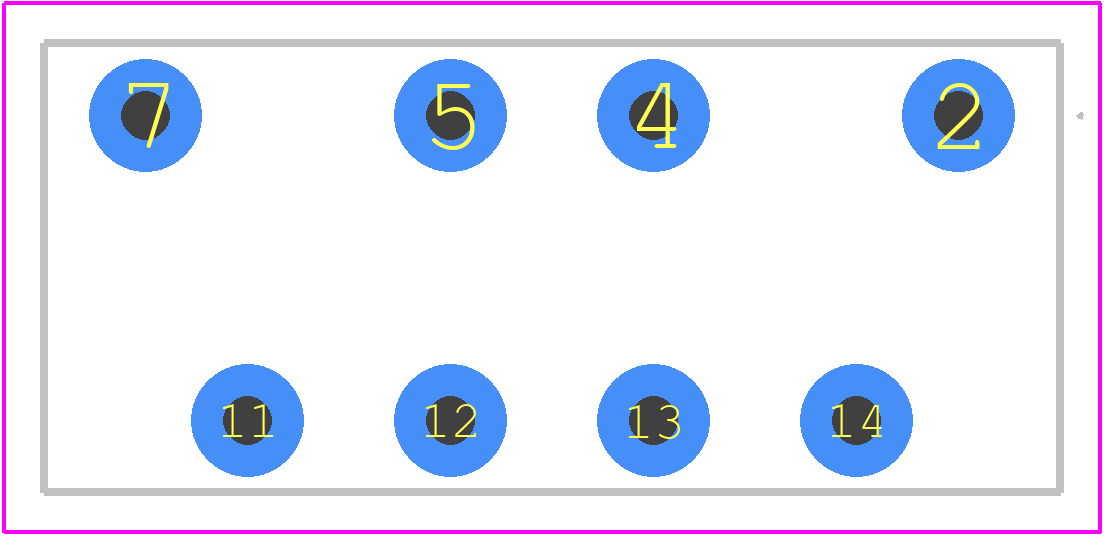

Use the download button to access the NC2D-P-DC5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC2D-,
or try a keyword search, such as Power/Signal Relays
