The maximum switching frequency of the NC2EBD-P-DC5V relay is 30 Hz, as specified in the datasheet. However, it's recommended to limit the switching frequency to 10 Hz or less to ensure reliable operation and minimize wear on the relay contacts.
The NC2EBD-P-DC5V relay is rated for operation up to 85°C (185°F). While it can tolerate high temperatures, it's essential to ensure proper cooling and consider derating the relay's performance at elevated temperatures to prevent premature failure.
To ensure proper operation, the relay requires a minimum of 4.5V and a maximum of 5.5V DC supply voltage. The relay coil should be driven with a current of 100 mA or less, and the control signal should be a clean, noise-free digital signal with a rise and fall time of 10 ns or less.
The NC2EBD-P-DC5V relay has a bounce time of approximately 1 ms. This means that when the relay is switched, the contacts may bounce or chatter for a short period before settling into their final state. To account for this, it's recommended to add a debounce circuit or implement a software-based debounce mechanism in your design.
While the NC2EBD-P-DC5V relay is a high-quality component, it's essential to evaluate its suitability for safety-critical applications. The relay meets various safety standards, such as UL and EN, but it's crucial to consult with a qualified safety expert and perform a thorough risk assessment to ensure the relay meets the specific requirements of your application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC2EBD-P-DC5V Overview

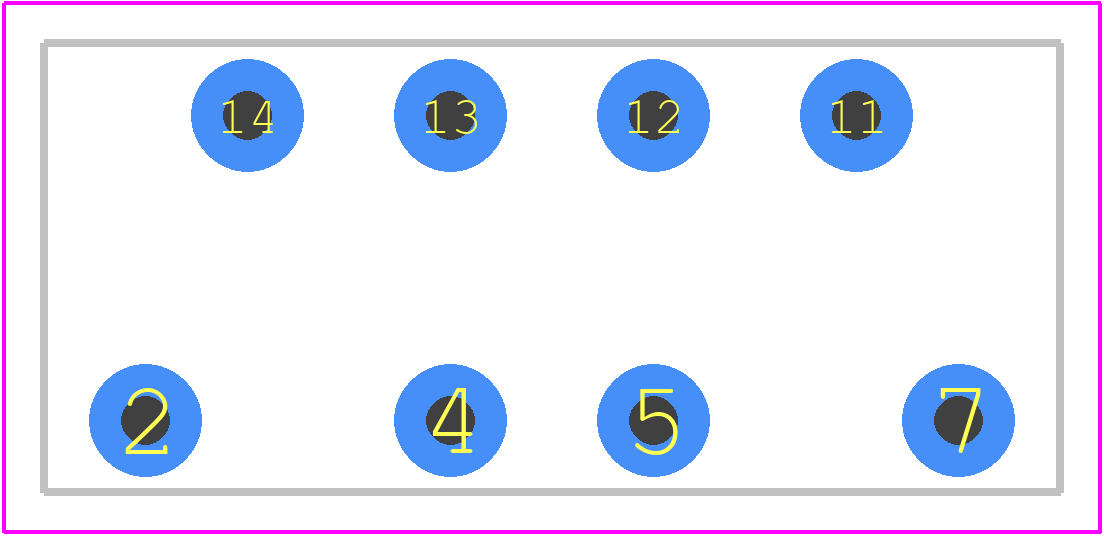

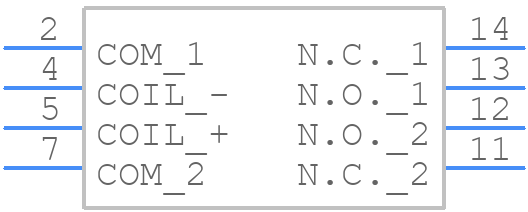

Use the download button to access the NC2EBD-P-DC5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC2EB,
or try a keyword search, such as Power/Signal Relays
