NC3FAH2-S - Neutrik

Description: XLR Connectors Recpt A series 3p F PCBH 1 ground cont

Download NC3FAH2-S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC3FAH2-S - Neutrik - PCB symbol
click to zoom
PCB Footprints

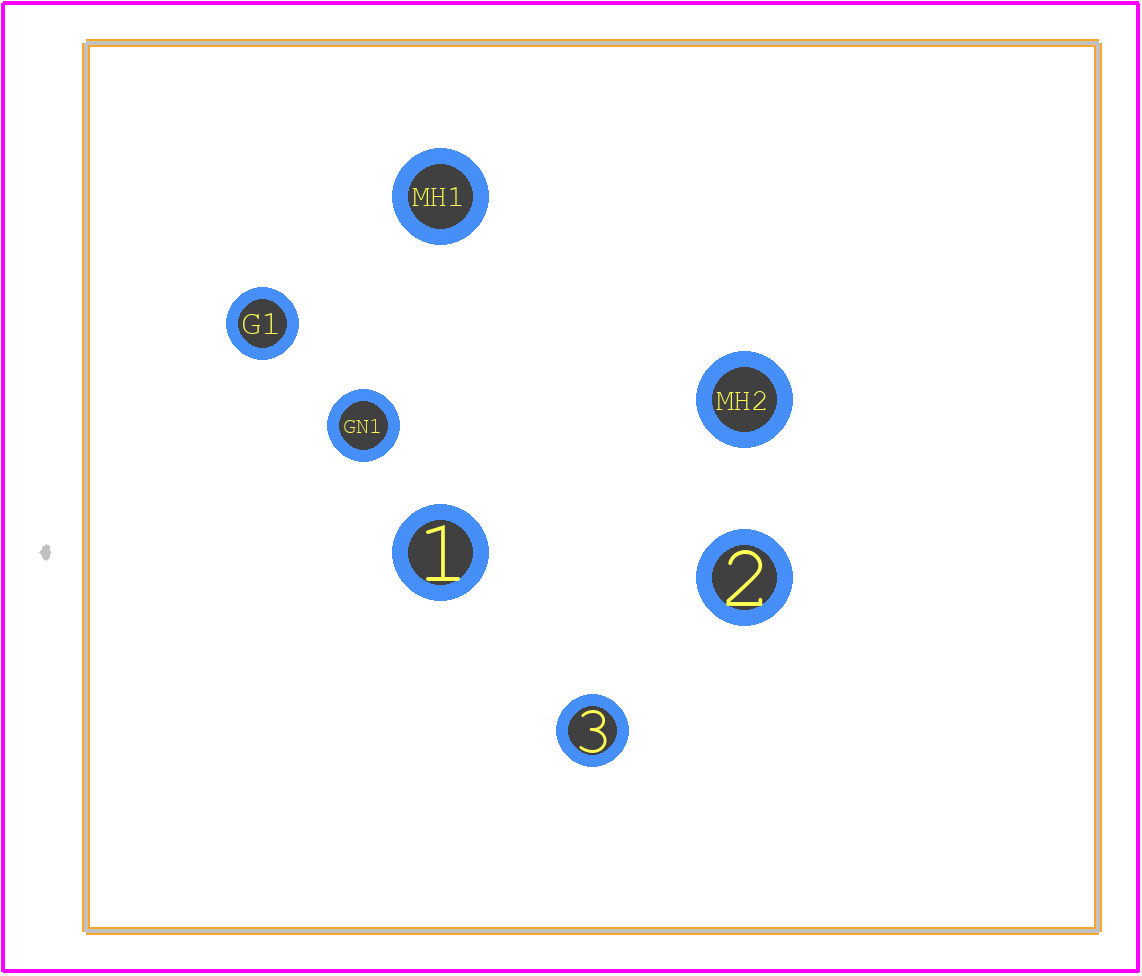

NC3FAH2-S - Neutrik PCB footprint - Other - Other - NC3FAH2-S-1
click to zoom
3D Models
NC3FAH2-S - Neutrik - 3D model - Other - NC3FAH2-S-1
click to zoom

NC3FAH2-S Details

  • Manufacturer Part Number:

    NC3FAH2-S

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • YTEOL:

    0

  • Connector Type:

    XLR

NC3FAH2-S Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the NC3FAH2-S connector is 0.5 Nm to 1.5 Nm (0.37 lbf.in to 1.06 lbf.in). Over-tightening can damage the connector.
  • Yes, the NC3FAH2-S connector is suitable for outdoor use due to its rugged design and IP65 rating, which provides protection against dust and water ingress.
  • The NC3FAH2-S connector is designed for audio applications and is not suitable for high-power applications. It's rated for a maximum current of 10 A and voltage of 250 V AC/DC.
  • Yes, the NC3FAH2-S connector is compatible with other Neutrik XLR connectors, including the NC3FX and NC3MX series.
  • The operating temperature range of the NC3FAH2-S connector is -20°C to +70°C (-4°F to +158°F).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NC3FAH2-S Overview

Use the download button to access the NC3FAH2-S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC3FA, or try a keyword search, such as Audio/RCA Connectors
