- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NC3FBV2
- Part Number NC3FBV2
- Manufacturer Neutrik
- Pin Count 4
- Part Category Connector
- Package Category Other

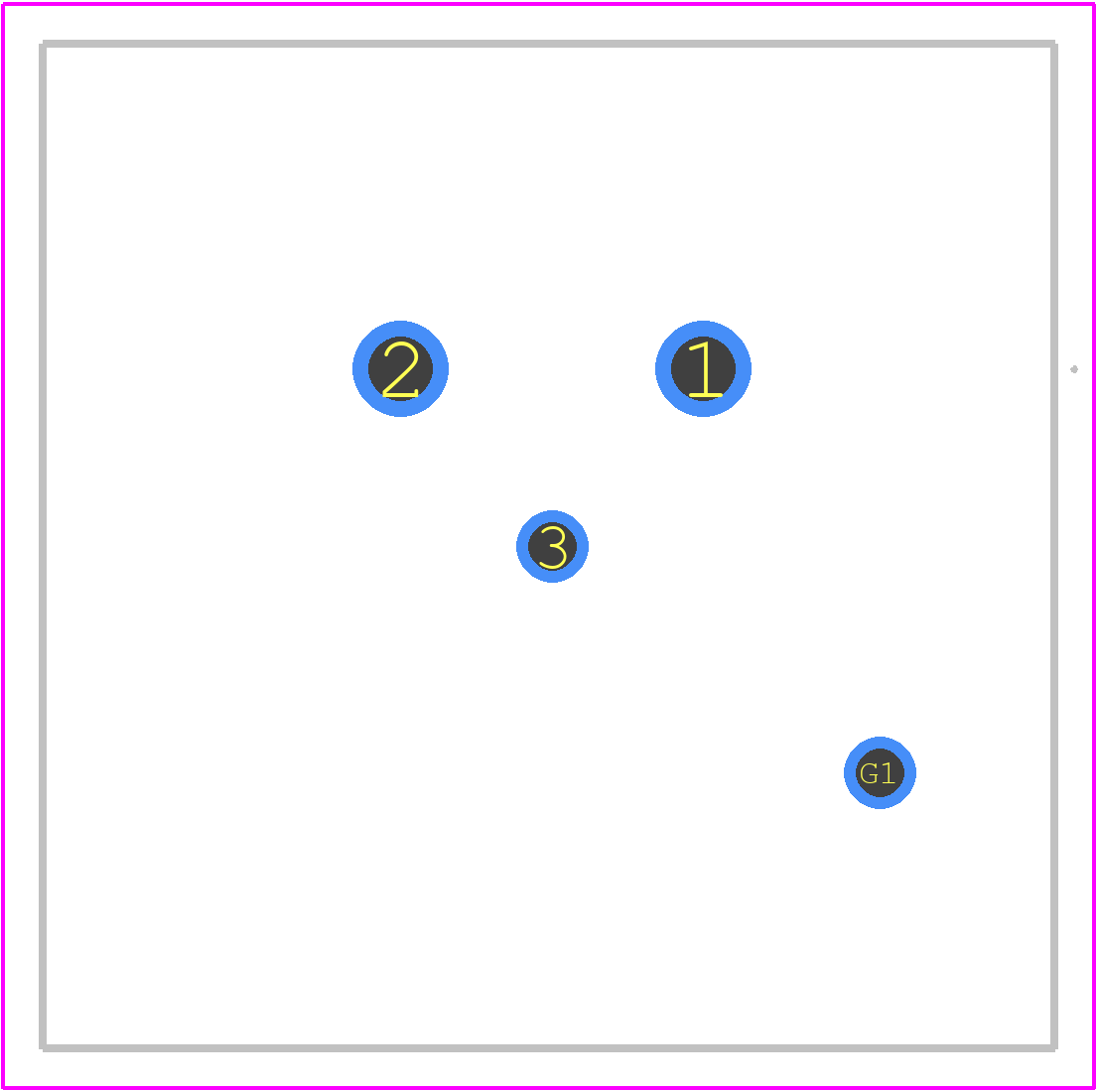

- Footprint Name Other - NC3FBV2-3
- Released Date Mar 5, 2021
- Last Modified Date Mar 1, 2026 10:57 AM UTC
- Pinout / Pin List Click Here (Member Only)
NC3FBV2 Details
-
Manufacturer Part Number:
NC3FBV2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
Additional Feature:
STANDARD: IEC 61076-2-103, IP40
-
Body/Shell Style:
RECEPTACLE
-
Configuration:
1X1 VERTICAL
-
Connector Type:
XLR
-
Contact Finish Mating:
NOT SPECIFIED
NC3FBV2 Frequently Asked Questions (FAQs)
-
The recommended torque for tightening the NC3FBV2 connector is 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in).
-
Yes, the NC3FBV2 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
-
The NC3FBV2 connector is rated for up to 20 A, making it suitable for high-power applications. However, it's essential to ensure proper heat dissipation and follow Neutrik's guidelines for high-current applications.
-
Yes, the NC3FBV2 connector is compatible with other Neutrik products, including their range of XLR connectors and adapters, allowing for flexible system design and integration.
-
The NC3FBV2 connector is designed to operate within a temperature range of -20°C to 75°C (-4°F to 167°F), making it suitable for a wide range of applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
NC3FBV2 Overview
Use the download button to access the NC3FBV2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC3FB,
or try a keyword search, such as Audio/RCA Connectors
