NC3FD-H - Neutrik

Description: 3 pole female receptacle, horizontal PCB mount, Nickel housing, silver contacts

Download NC3FD-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC3FD-H - Neutrik - PCB symbol
click to zoom
PCB Footprints

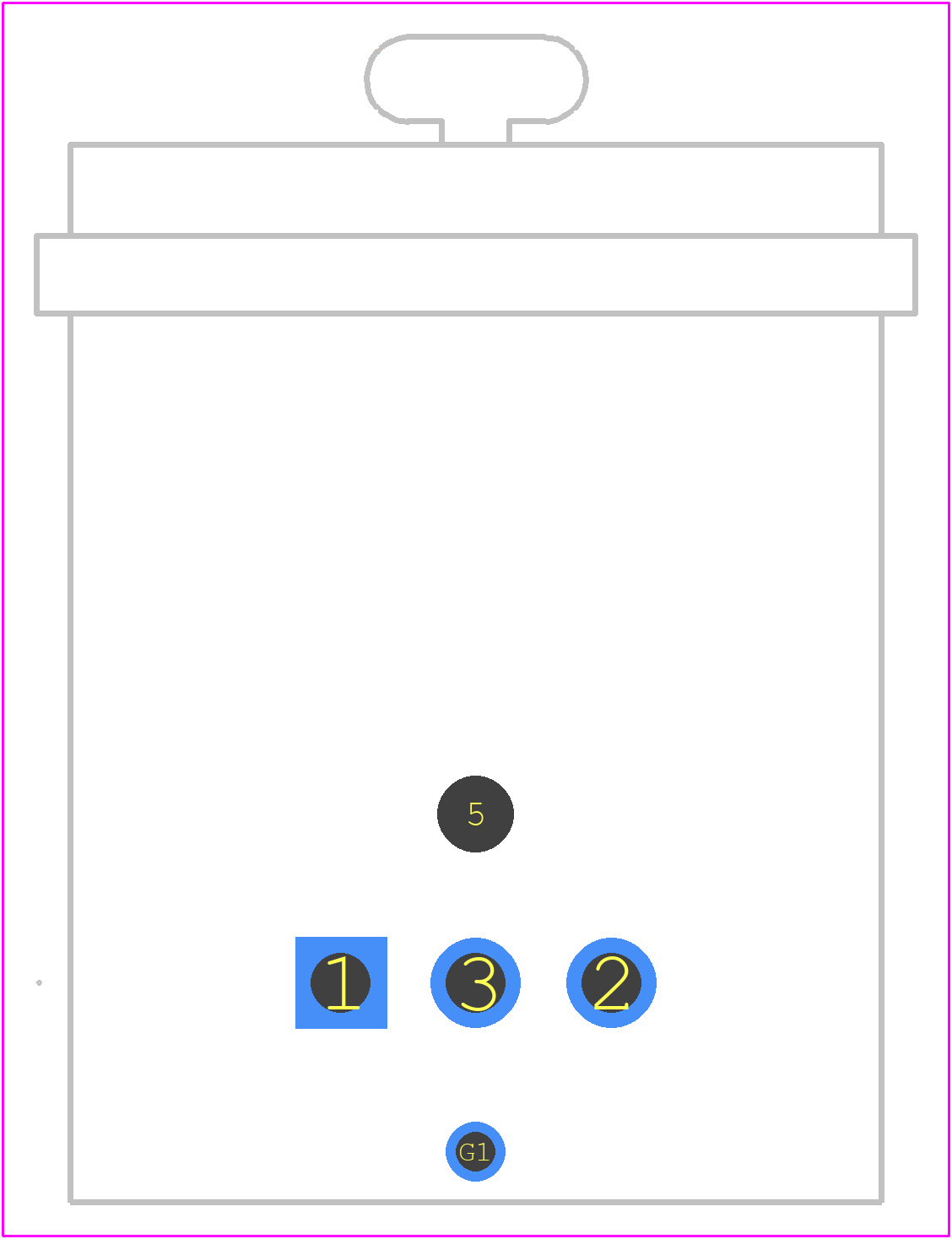

NC3FD-H - Neutrik PCB footprint - Other - Other - NC3FD-H-3
click to zoom
3D Models
NC3FD-H - Neutrik - 3D model - Other - NC3FD-H-3
click to zoom

NC3FD-H Details

  • Manufacturer Part Number:

    NC3FD-H

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    XLR

  • Contact Finish Mating:

    AG ON NI

  • Contact Material:

    BRONZE

  • DIN Conformance:

    YES

NC3FD-H Frequently Asked Questions (FAQs)

  • The recommended torque for the NC3FD-H connector is 0.5 Nm to 1.5 Nm (0.37 in-lbs to 1.06 in-lbs).
  • Yes, the NC3FD-H connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • No, the NC3FD-H connector is not suitable for high-power applications. It is designed for low-power, high-frequency applications such as audio and data transmission.
  • Yes, the NC3FD-H connector is compatible with other Neutrik connectors, including the NC3MX and NC3FX series.
  • The operating temperature range of the NC3FD-H connector is -20°C to 75°C (-4°F to 167°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NC3FD-H Overview

Use the download button to access the NC3FD-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC3FD, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
