NC3FDM3-H footprint, schematic symbol and 3D model by Neutrik

Symbol

click to zoom

PCB Footprints

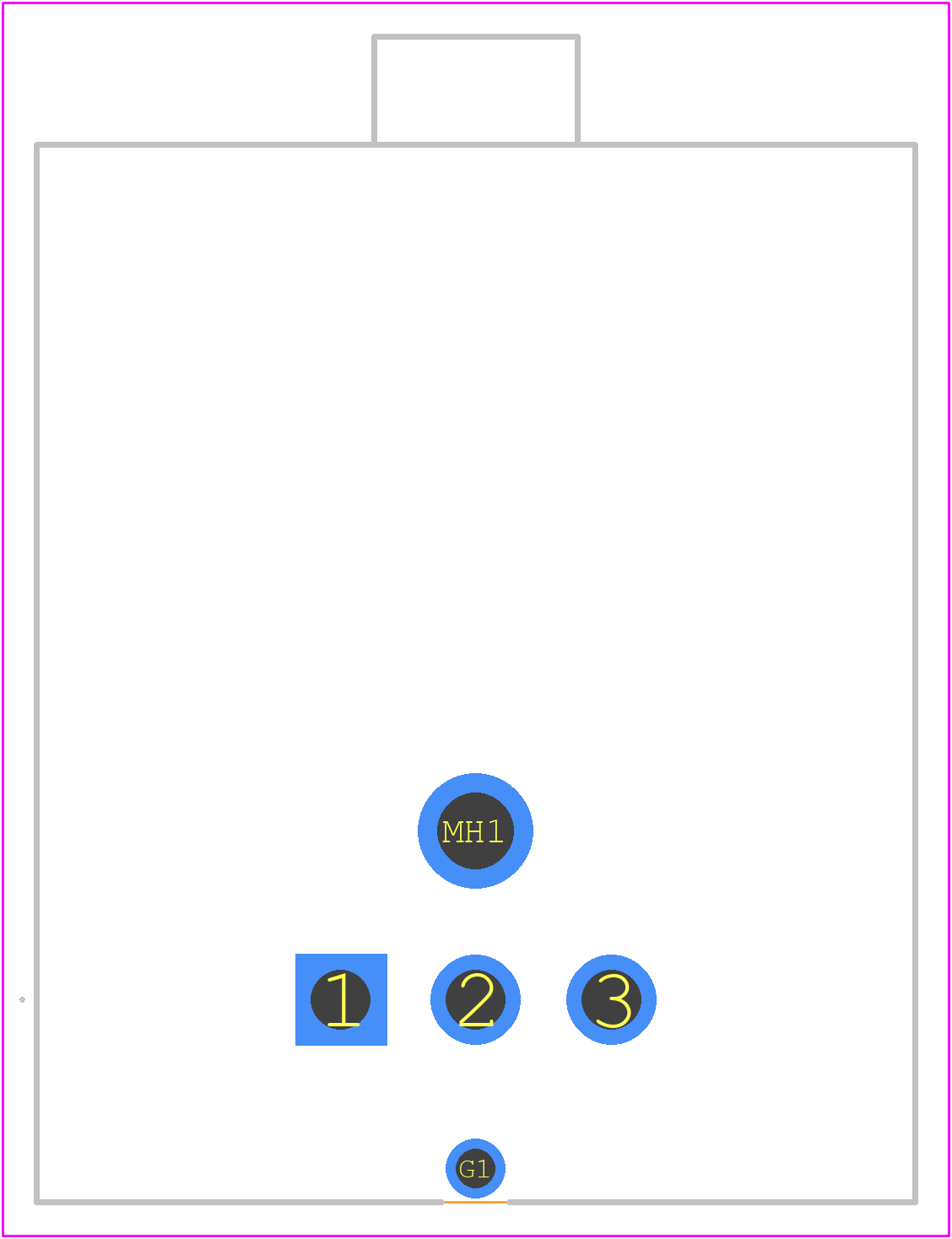

NC3FDM3-H - Neutrik PCB footprint - Other - Other - NC3FDM3-H-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NC3FDM3-H
Part Number NC3FDM3-H
Manufacturer Neutrik
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - NC3FDM3-H-3
Released Date May 26, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

NC3FDM3-H Details

Manufacturer Part Number:
NC3FDM3-H
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Neutrik USA Inc
Body Breadth:
1.22 inch
Body Depth:
1.051 inch
Body Length:
1.024 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
XLR
Contact Finish Mating:
AG ON NI
Contact Gender:
FEMALE
Contact Material:
BRONZE
Contact Resistance:
5 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
1500VDC V
Durability:
1000 Cycles
Insertion Force-Max:
20.016 N
Insulation Resistance:
10000000000 Ω
Mounting Option 1:
M3
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Poles:
3
Number of Ports:
1
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-30 °C
Plating Thickness:
79u inch
Polarization Key:
POLARIZED KEY
Rated Current (Signal):
6 A
Reference Standard:
UL
Shell Finish:
NICKEL
Shell Material:
ZINC ALLOY
Terminal Length:
0.138 inch
Termination Type:
SOLDER
Withdrawl Force-Min:
20.016 N

NC3FDM3-H Frequently Asked Questions (FAQs)

The recommended torque for tightening the NC3FDM3-H connector is 0.6 Nm (5.3 in-lbs) to ensure proper connection and prevent damage.
Yes, the NC3FDM3-H connector is suitable for outdoor use due to its rugged design and IP67 rating, which provides protection against dust and water ingress.
The NC3FDM3-H connector is designed for high-current applications up to 40 A, making it suitable for use in high-power systems. However, it's essential to ensure proper heat dissipation and follow the manufacturer's guidelines for maximum power handling.
Yes, the NC3FDM3-H connector is part of the Neutrik XLR series and is compatible with other Neutrik products, including their range of XLR connectors, adapters, and cable assemblies.
The NC3FDM3-H connector has an operating temperature range of -20°C to +70°C (-4°F to +158°F), making it suitable for use in a wide range of environments.

Trust Checks

Community Provided

System Verified

Community Approved

NC3FDM3-H Overview

Use the download button to access the NC3FDM3-H schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NC3FD, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
