NC3MAAH-1 - Neutrik

NC3MAAH-1 Details

• Manufacturer Part Number:

  NC3MAAH-1

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.10

• Manufacturer:

  Neutrik USA Inc

• YTEOL:

  8

• Additional Feature:

  STANDARD: IEC 61076-2-103, IP40

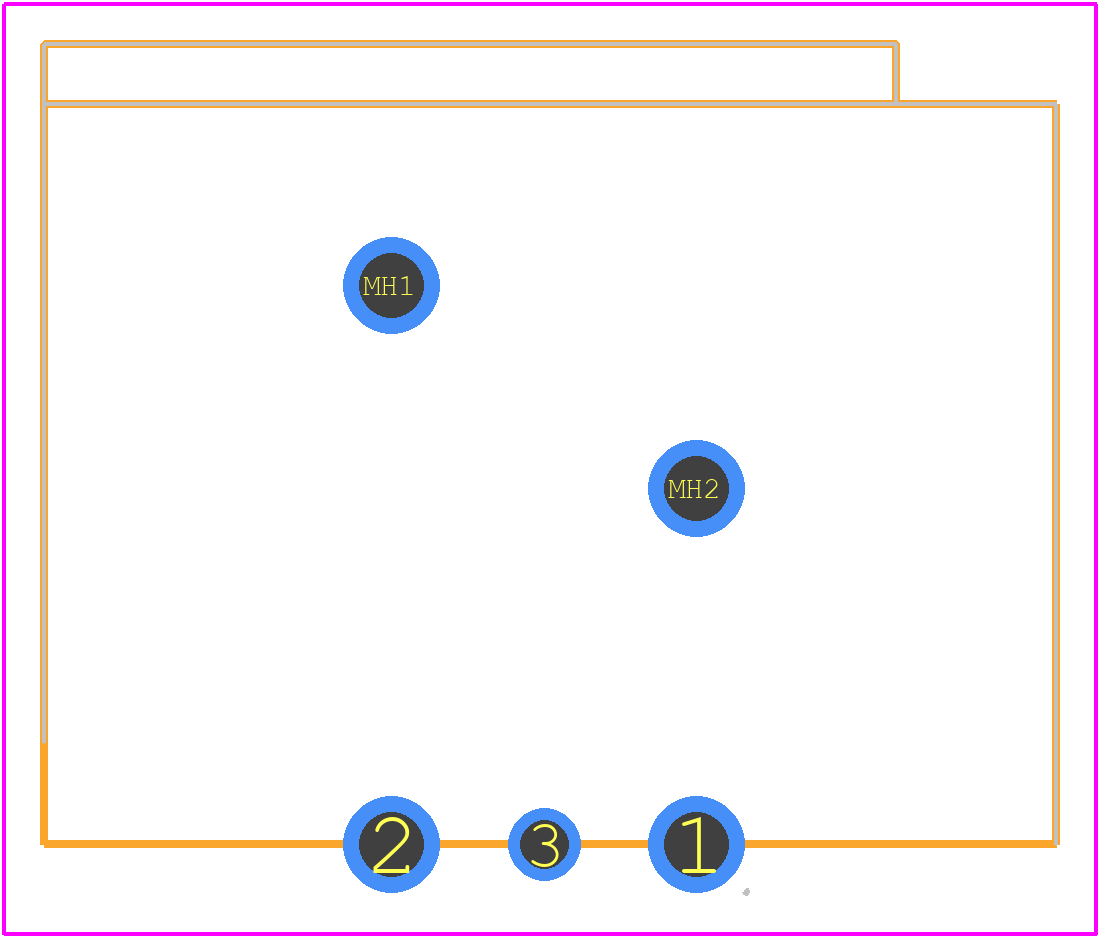

• Board Mounting Option:

  HOLE 0.063

• Body Breadth:

  0.996 inch

• Body Depth:

  0.836 inch

• Body Length:

  0.996 inch

• Body/Shell Style:

  RECEPTACLE

• Configuration:

  1X1 HORIZONTAL

• Connector Type:

  XLR

• Contact Gender:

  MALE

• Contact Resistance:

  6 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1500VDC V

• Durability:

  1000 Cycles

• Insertion Force-Max:

  20 N

• Insulation Resistance:

  10000000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE66

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number of Poles:

  3

• Number of Ports:

  1

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -30 °C

• Option:

  GENERAL PURPOSE

• Polarization Key:

  POLARIZED KEY

• Rated Current (Signal):

  6 A

• Reference Standard:

  IEC, UL

• Termination Type:

  SOLDER
