NC3MAH-0 footprint, schematic symbol and 3D model by Neutrik

Symbol

click to zoom

PCB Footprints

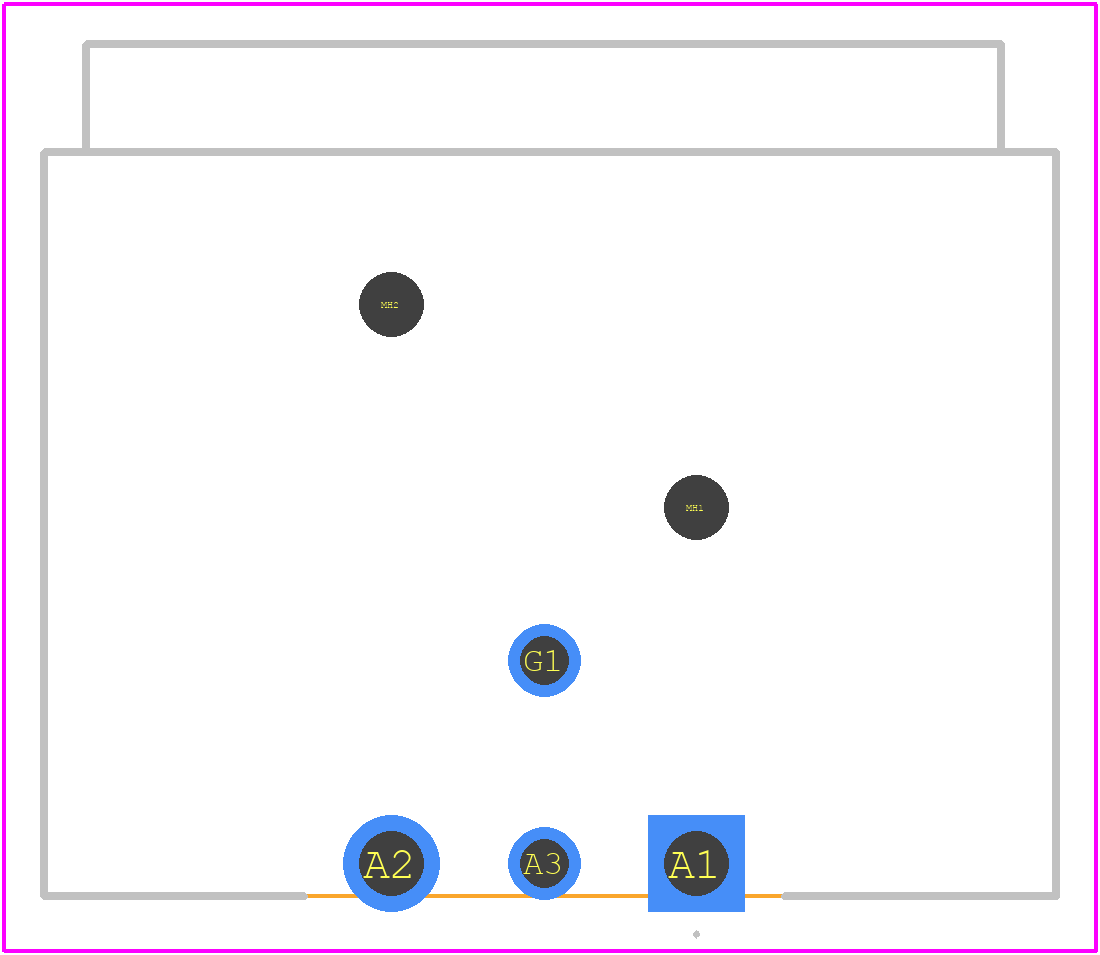

NC3MAH-0 - Neutrik PCB footprint - Other - Other - NC3MAH-0

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NC3MAH-0
Part Number NC3MAH-0
Manufacturer Neutrik
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - NC3MAH-0
Released Date Jul 30, 2019
Last Modified Date Apr 10, 2025 11:27 AM UTC
Pinout / Pin List Click Here (Member Only)

NC3MAH-0 Details

Manufacturer Part Number:
NC3MAH-0
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Neutrik USA Inc
Body/Shell Style:
RECEPTACLE
Configuration:
1X1 HORIZONTAL
Connector Type:
XLR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mounting Type:
BOARD AND PANEL
Number Of Connectors:
ONE
Number of Poles:
3
Number of Ports:
1
Option:
GENERAL PURPOSE
Termination Type:
SOLDER

NC3MAH-0 Frequently Asked Questions (FAQs)

The recommended torque for the NC3MAH-0 connector is 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in).
Yes, the NC3MAH-0 connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
No, the NC3MAH-0 connector is not suitable for high-power applications. It is designed for low-power, high-frequency applications such as audio and data transmission.
Yes, the NC3MAH-0 connector is compatible with other Neutrik connectors, including the NC3FDL-1 and NC3MDM-1 connectors.
The operating temperature range of the NC3MAH-0 connector is -20°C to 75°C (-4°F to 167°F).
