NC3MAH-S - Neutrik

Description: RECEPTACLE - A SERIES - XLR 3 PIN - MALE - PCBH - PIN 1 ISOLATED - GROUND CONTACT/SHELL/FRONT PANEL CONNECTED - ADDITIONAL NORMALLY CLOSED (NC) GROUND CONTACT - PLASTIC/GOLD

Download NC3MAH-S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC3MAH-S - Neutrik - PCB symbol
click to zoom
PCB Footprints

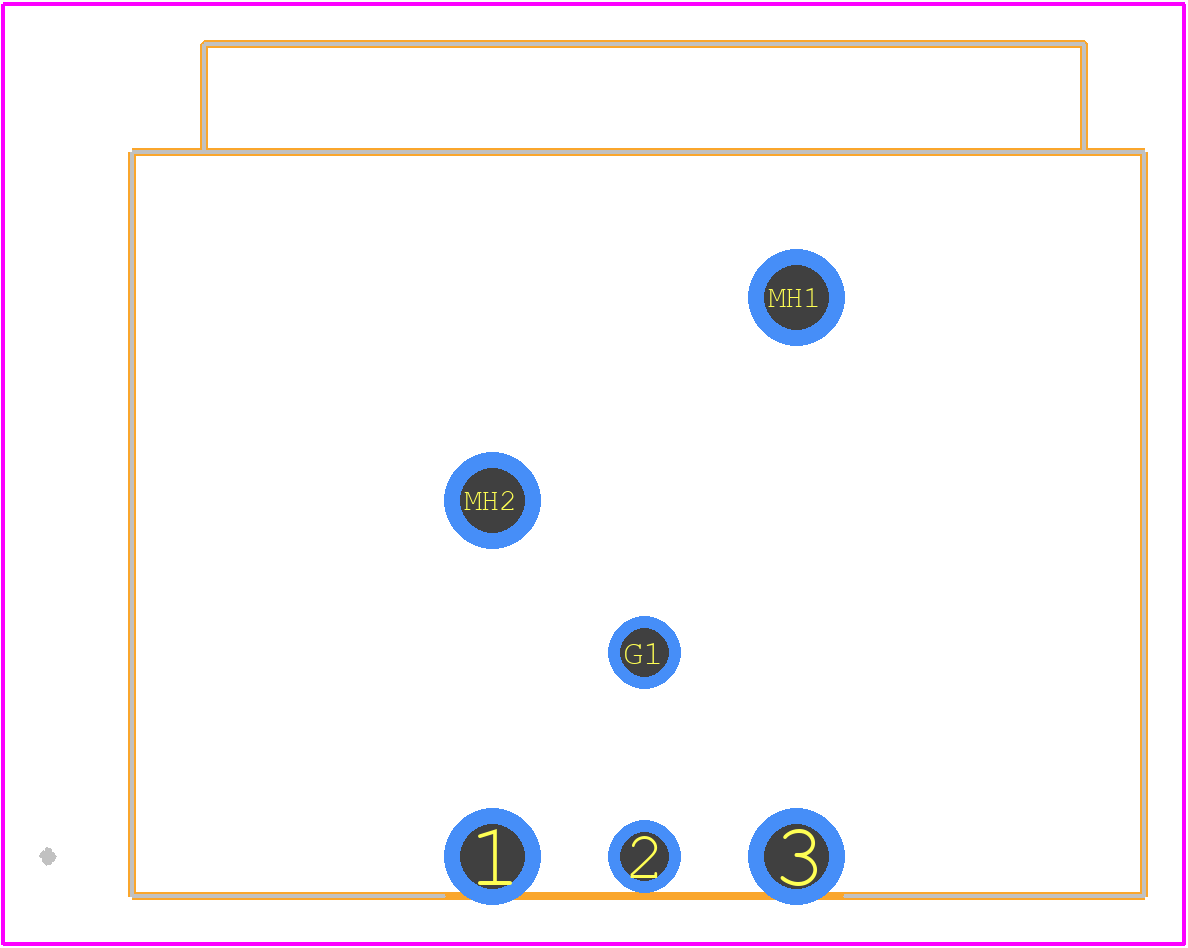

NC3MAH-S - Neutrik PCB footprint - Other - Other - NC3MAH-S-1
click to zoom

NC3MAH-S Details

  • Manufacturer Part Number:

    NC3MAH-S

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    XLR

NC3MAH-S Frequently Asked Questions (FAQs)

  • The recommended torque for the NC3MAH-S connector is 0.5 Nm to 1.5 Nm (0.37 lbf.in to 1.06 lbf.in) for the screw locks, and 1.5 Nm to 2.5 Nm (1.06 lbf.in to 1.83 lbf.in) for the hex nuts.
  • Yes, the NC3MAH-S connector is suitable for outdoor use due to its rugged design and IP65 rating, which provides protection against dust and water ingress.
  • The NC3MAH-S connector is rated for up to 20 A, making it suitable for high-power applications. However, it's essential to ensure that the connector is properly installed and maintained to prevent overheating and damage.
  • Yes, the NC3MAH-S connector is designed to be compatible with other Neutrik products, including their range of XLR connectors and adapters.
  • The operating temperature range for the NC3MAH-S connector is -30°C to +80°C (-22°F to +176°F).
