Symbol

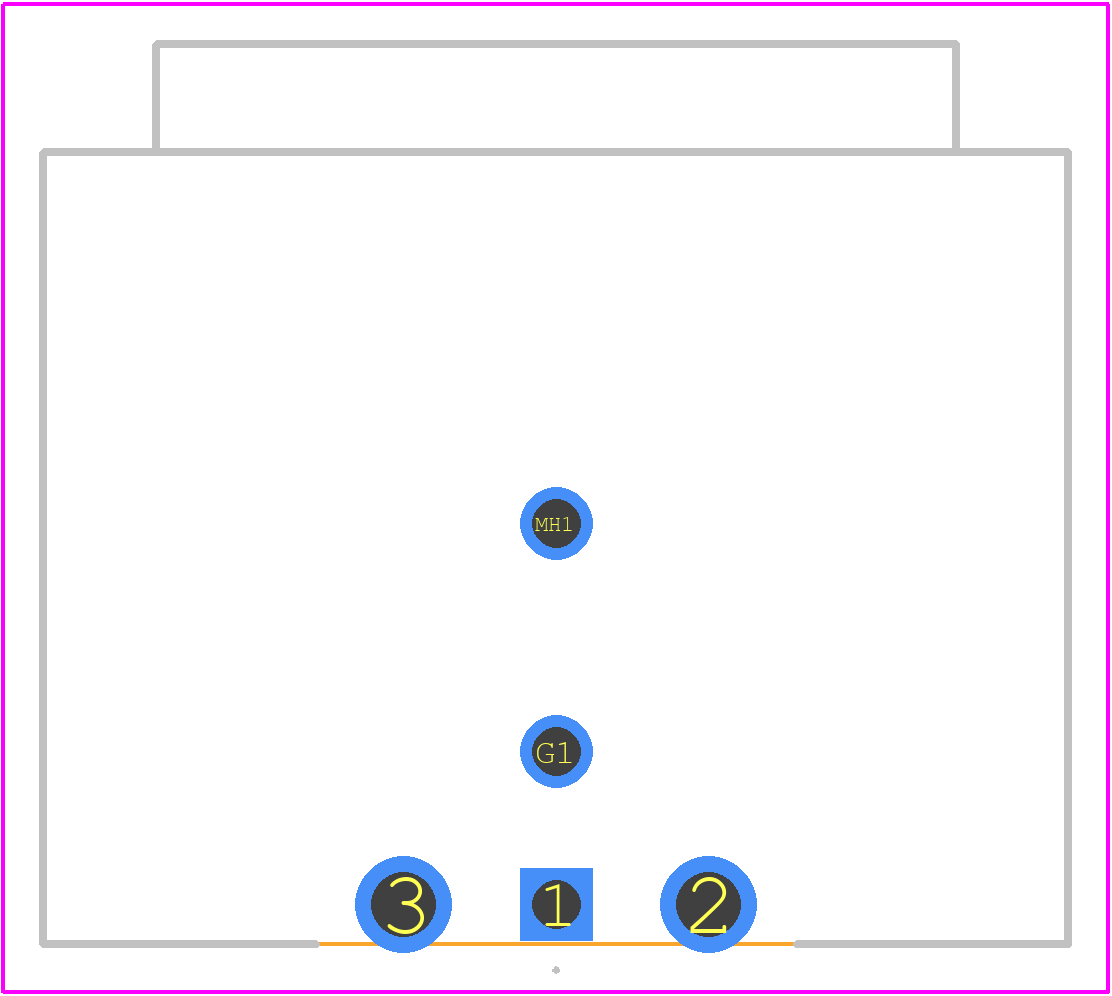

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NC3MAHL
- Part Number NC3MAHL
- Manufacturer Neutrik
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - NC3MAHL-1
- Released Date Dec 26, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NC3MAHL Details
-
Manufacturer Part Number:
NC3MAHL
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
Connector Type:
XLR
NC3MAHL Frequently Asked Questions (FAQs)
-
The recommended torque for the NC3MAHL connector is 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in) for the screw locks, and 1.5 Nm to 2.5 Nm (1.06 lbf·in to 1.83 lbf·in) for the hex nuts.
-
Yes, the NC3MAHL connector is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
-
Yes, the NC3MAHL connector is designed for high-power applications. It has a current rating of up to 40 A and a voltage rating of up to 600 V, making it suitable for use in high-power audio and lighting systems.
-
Yes, the NC3MAHL connector is compatible with other Neutrik products, including their range of XLR connectors, adapters, and cable assemblies.
-
Yes, the NC3MAHL connector can be used in high-temperature environments. It has an operating temperature range of -30°C to +80°C (-22°F to +176°F), making it suitable for use in a wide range of applications.
Trust Checks
Community Provided
System Verified
Community Approved
NC3MAHL Overview
Use the download button to access the NC3MAHL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NC3MA,
or try a keyword search, such as Audio/RCA Connectors
About Neutrik
Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
