- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NC3MAHR
- Part Number NC3MAHR
- Manufacturer Neutrik
- Pin Count 5
- Part Category Connector
- Package Category Other

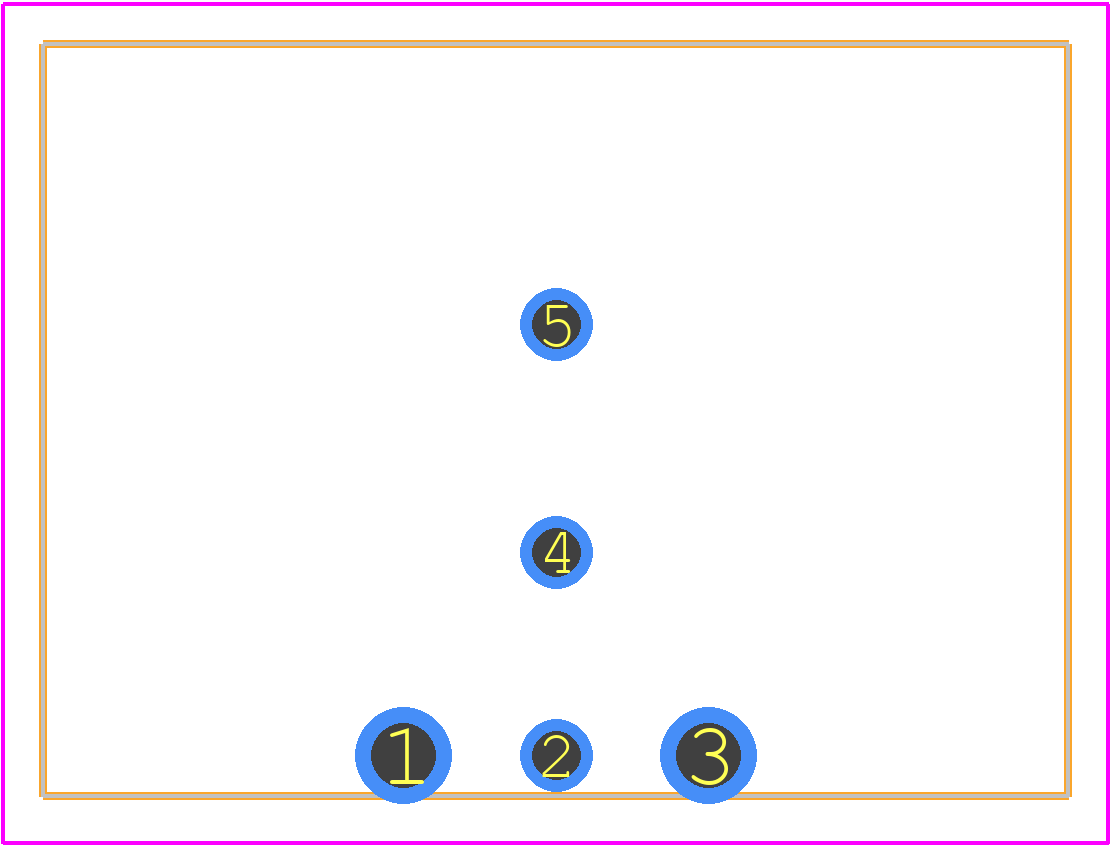

- Footprint Name Other - NC3MAHR-2
- Released Date Oct 14, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NC3MAHR Details
-
Manufacturer Part Number:
NC3MAHR
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
Connector Type:
XLR
NC3MAHR Frequently Asked Questions (FAQs)
-
The recommended torque for the NC3MAHR connector is 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in) for the screw locks, and 1.5 Nm to 2.5 Nm (1.06 lbf·in to 1.83 lbf·in) for the hex nuts.
-
Yes, the NC3MAHR connector is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water immersion up to 1 meter for 30 minutes.
-
The NC3MAHR connector is rated for up to 20 A, making it suitable for high-power applications. However, it's essential to ensure that the connector is properly installed and maintained to prevent overheating and damage.
-
Yes, the NC3MAHR connector is compatible with other Neutrik products, including their range of XLR connectors and adapters. This allows for easy integration into existing systems and flexibility in design.
-
The operating temperature range of the NC3MAHR connector is -30°C to +80°C (-22°F to +176°F), making it suitable for use in a wide range of environments.
Trust Checks
Expert Contribution
System Verified
Community Approved
NC3MAHR Overview
Use the download button to access the NC3MAHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC3MA,
or try a keyword search, such as Audio/RCA Connectors
