NC3MBH - Neutrik

Description: Conn XLR Connector Adapter M 3 POS Solder RA Thru-Hole 3 Terminal 1 Port

Download NC3MBH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC3MBH - Neutrik - PCB symbol
click to zoom
PCB Footprints

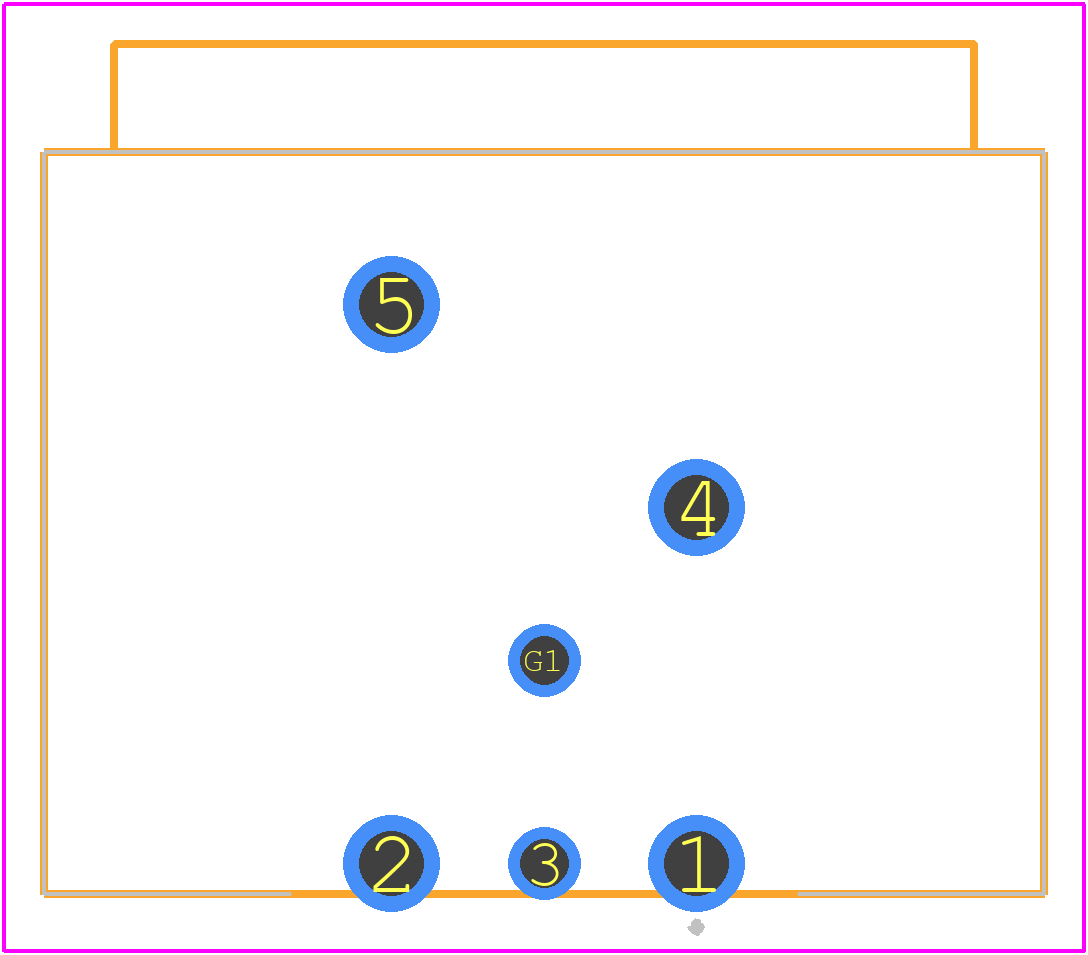

NC3MBH - Neutrik PCB footprint - Other - Other - NC3MBH-1
click to zoom
3D Models
NC3MBH - Neutrik - 3D model - Other - NC3MBH-1
click to zoom

NC3MBH Details

  • Manufacturer Part Number:

    NC3MBH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    XLR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

NC3MBH Frequently Asked Questions (FAQs)

  • The recommended torque for the NC3MBH connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs).
  • Yes, the NC3MBH connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • No, the NC3MBH connector is not suitable for high-power applications. It is designed for low-power, high-frequency applications such as audio and video transmission.
  • Yes, the NC3MBH connector is compatible with other Neutrik connectors, including the NC3FX-B and NC3MX-B connectors.
  • The operating temperature range of the NC3MBH connector is -20°C to 75°C (-4°F to 167°F).
