- Part Number NC3MBHL
- Manufacturer Neutrik
- Pin Count 4
- Part Category Connector
- Package Category Other

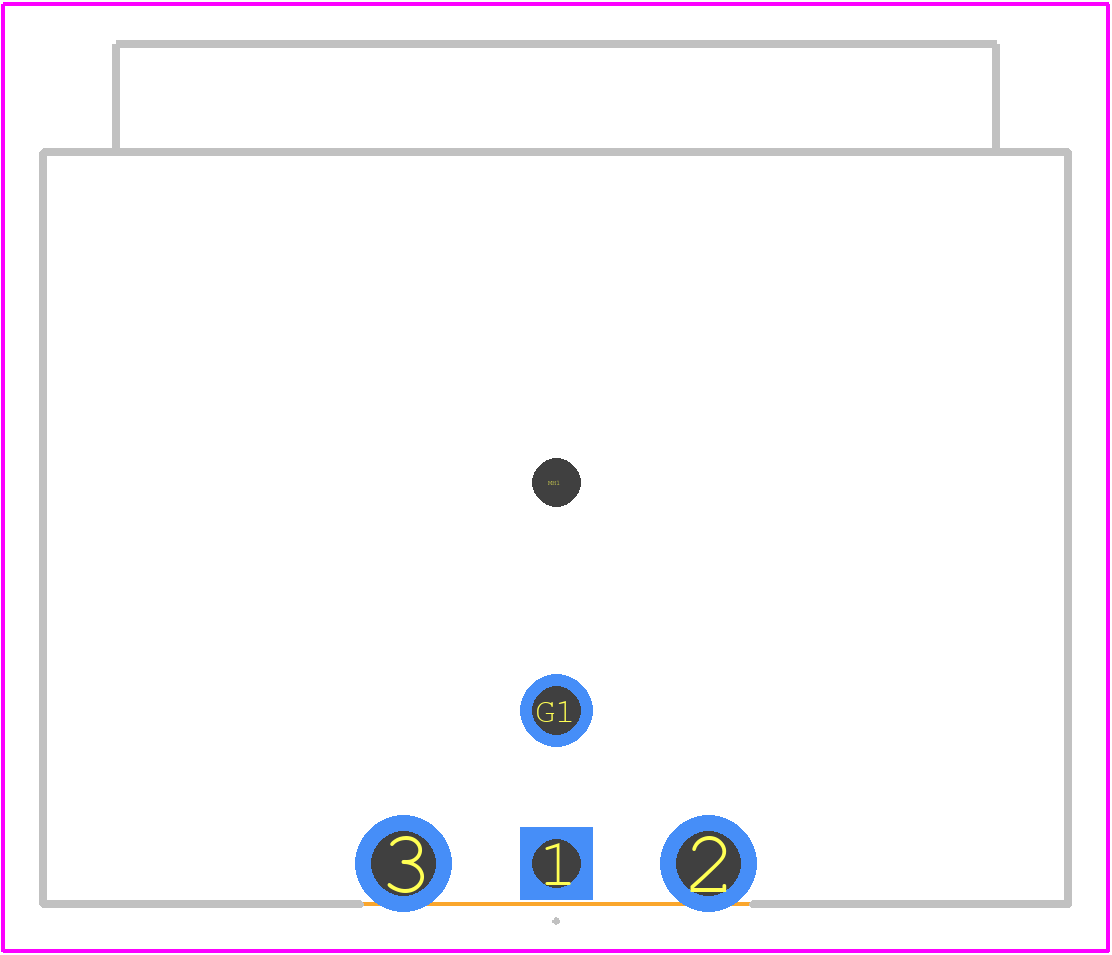

- Footprint Name Other - NC3MBHL-1_2022
- Released Date Aug 14, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NC3MBHL Details
-
Manufacturer Part Number:
NC3MBHL
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
Connector Type:
XLR
NC3MBHL Frequently Asked Questions (FAQs)
-
The recommended torque for tightening the NC3MBHL connector is 0.6 Nm (5.3 in-lbs) to ensure a secure connection.
-
Yes, the NC3MBHL connector is suitable for outdoor use due to its rugged design and IP65 rating, which provides protection against dust and water ingress.
-
The NC3MBHL connector is rated for up to 20 A, making it suitable for high-power applications. However, it's essential to ensure that the connector is properly installed and maintained to prevent overheating and damage.
-
Yes, the NC3MBHL connector is part of the Neutrik XLR series and is compatible with other Neutrik XLR connectors, making it easy to integrate into existing systems.
-
The NC3MBHL connector has an operating temperature range of -20°C to +55°C (-4°F to +131°F), making it suitable for use in a wide range of environments.
Trust Checks
Community Provided
System Verified
Community Approved
NC3MBHL Overview
Use the download button to access the NC3MBHL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC3MB,
or try a keyword search, such as Audio/RCA Connectors
About Neutrik
Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
