- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NC3MBV
- Part Number NC3MBV
- Manufacturer Neutrik
- Pin Count 4
- Part Category Connector
- Package Category Other

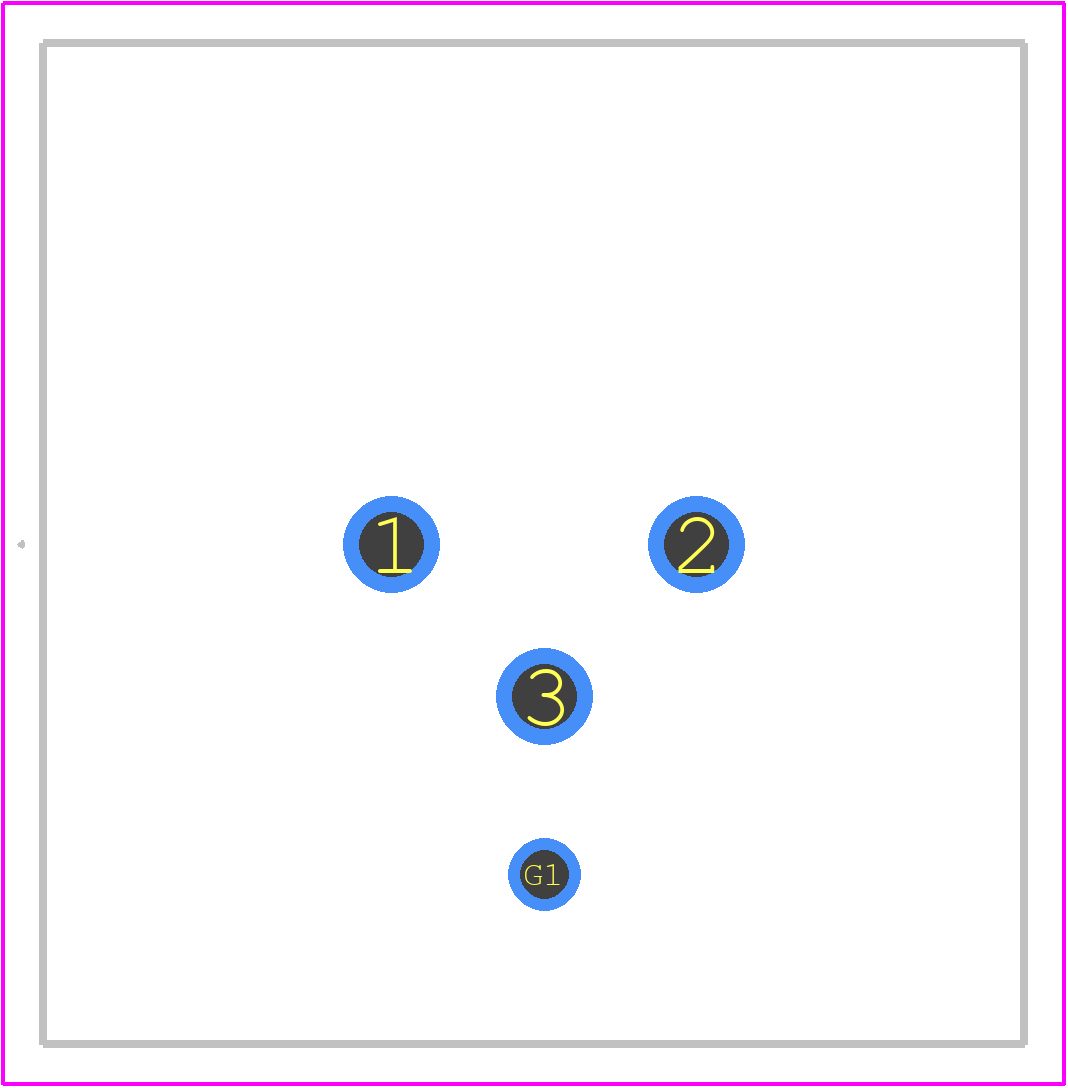

- Footprint Name Other - NC3MBV-2
- Released Date Mar 5, 2021
- Last Modified Date May 22, 2025 2:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
NC3MBV Details
-
Manufacturer Part Number:
NC3MBV
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
YTEOL:
6.2
NC3MBV Frequently Asked Questions (FAQs)
-
The recommended torque for the NC3MBV connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs).
-
Yes, the NC3MBV connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
-
No, the NC3MBV connector is not suitable for high-power applications. It is designed for low-power, high-frequency applications such as audio and video transmission.
-
Yes, the NC3MBV connector is compatible with other Neutrik connectors, including the NC3FXX and NC3MXX series.
-
The operating temperature range of the NC3MBV connector is -20°C to 75°C (-4°F to 167°F).
Trust Checks
Expert Contribution
System Verified
Community Approved
NC3MBV Overview
Use the download button to access the NC3MBV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC3MB,
or try a keyword search, such as Audio/RCA Connectors
About Neutrik
Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
