NC3MDM3-V - Neutrik

Description: XLR Connectors 3P M RECEPT DM3 SER VERT PCB MNT NK/SIL

Download NC3MDM3-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC3MDM3-V - Neutrik - PCB symbol
click to zoom
PCB Footprints

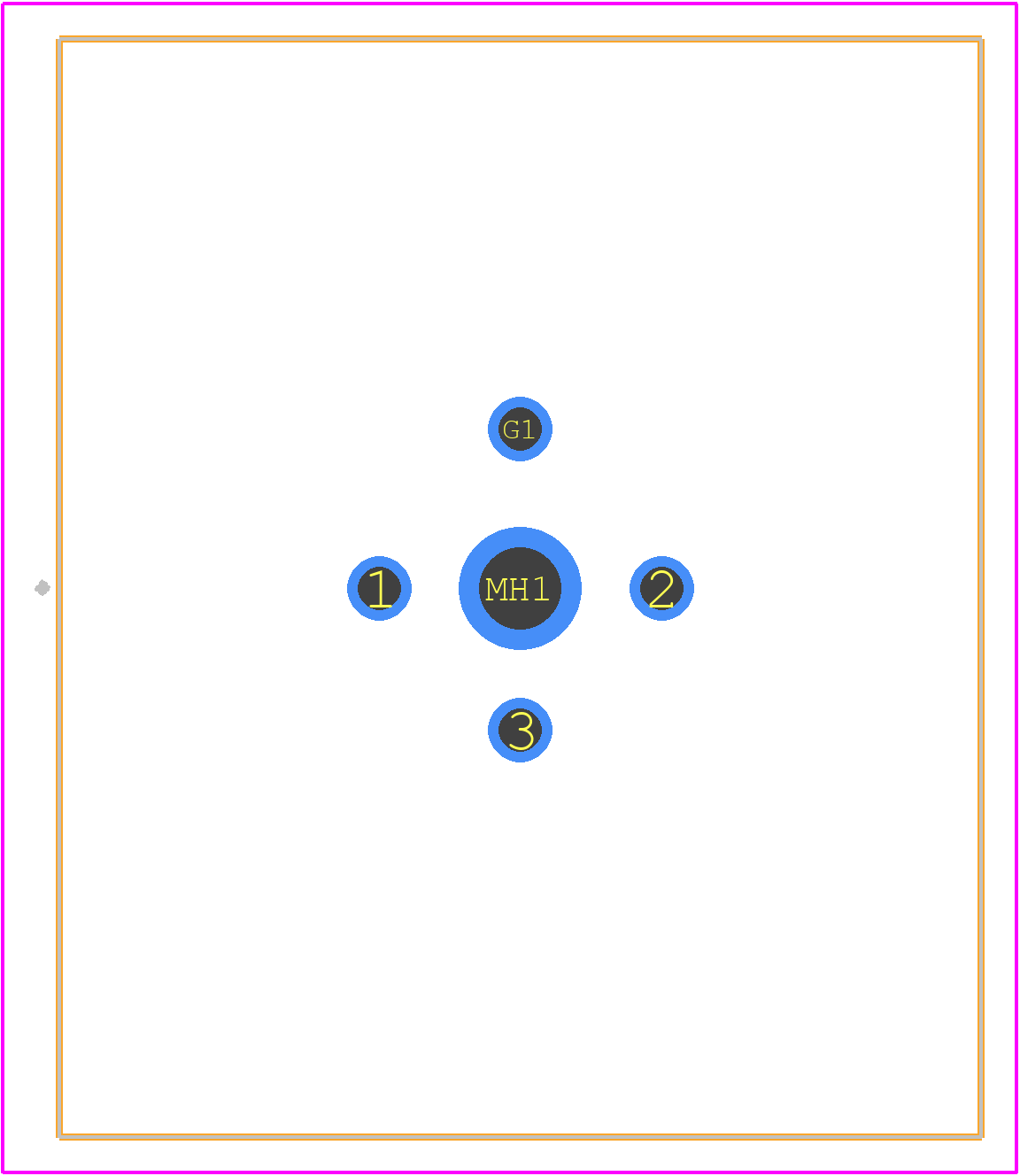

NC3MDM3-V - Neutrik PCB footprint - Other - Other - NC3MDM3-V-3
click to zoom
3D Models
NC3MDM3-V - Neutrik - 3D model - Other - NC3MDM3-V-3
click to zoom

NC3MDM3-V Details

  • Manufacturer Part Number:

    NC3MDM3-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Additional Feature:

    STANDARD: IEC 61076-2-103, IP40

  • Body/Shell Style:

    RECEPTACLE

  • Configuration:

    1X1 VERTICAL

  • Connector Type:

    XLR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

NC3MDM3-V Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the NC3MDM3-V connector is 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the NC3MDM3-V connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • Yes, the NC3MDM3-V connector is designed to withstand high-vibration environments, making it suitable for applications such as live sound, touring, and industrial installations.
  • Yes, the NC3MDM3-V connector is part of the Neutrik XLR series and is compatible with other Neutrik XLR connectors, including the NC3MX, NC3FX, and NC3MXX series.
  • The maximum cable diameter that can be used with the NC3MDM3-V connector is 8 mm (0.31 in).
