Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To ensure reliable operation in high-temperature environments, it's crucial to consider the relay's power dissipation, thermal resistance, and derating. Panasonic provides thermal derating curves in the datasheet, which can help engineers design a reliable system.
Panasonic recommends using a diode or a resistor-capacitor (RC) snubber circuit to suppress the coil voltage spike when the relay is turned off. This helps to reduce electromagnetic interference (EMI) and ensures reliable operation.
While the NC4D-JP-DC48V is a high-reliability relay, it's essential to evaluate its suitability for safety-critical applications. Engineers should consider factors like fault tolerance, redundancy, and failure modes to ensure the relay meets the required safety standards.
To select the correct coil voltage and resistance, engineers should consider factors like the relay's operating voltage, coil resistance, and power consumption. Panasonic provides coil voltage and resistance values in the datasheet, which can be used as a starting point for design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC4D-JP-DC48V Overview

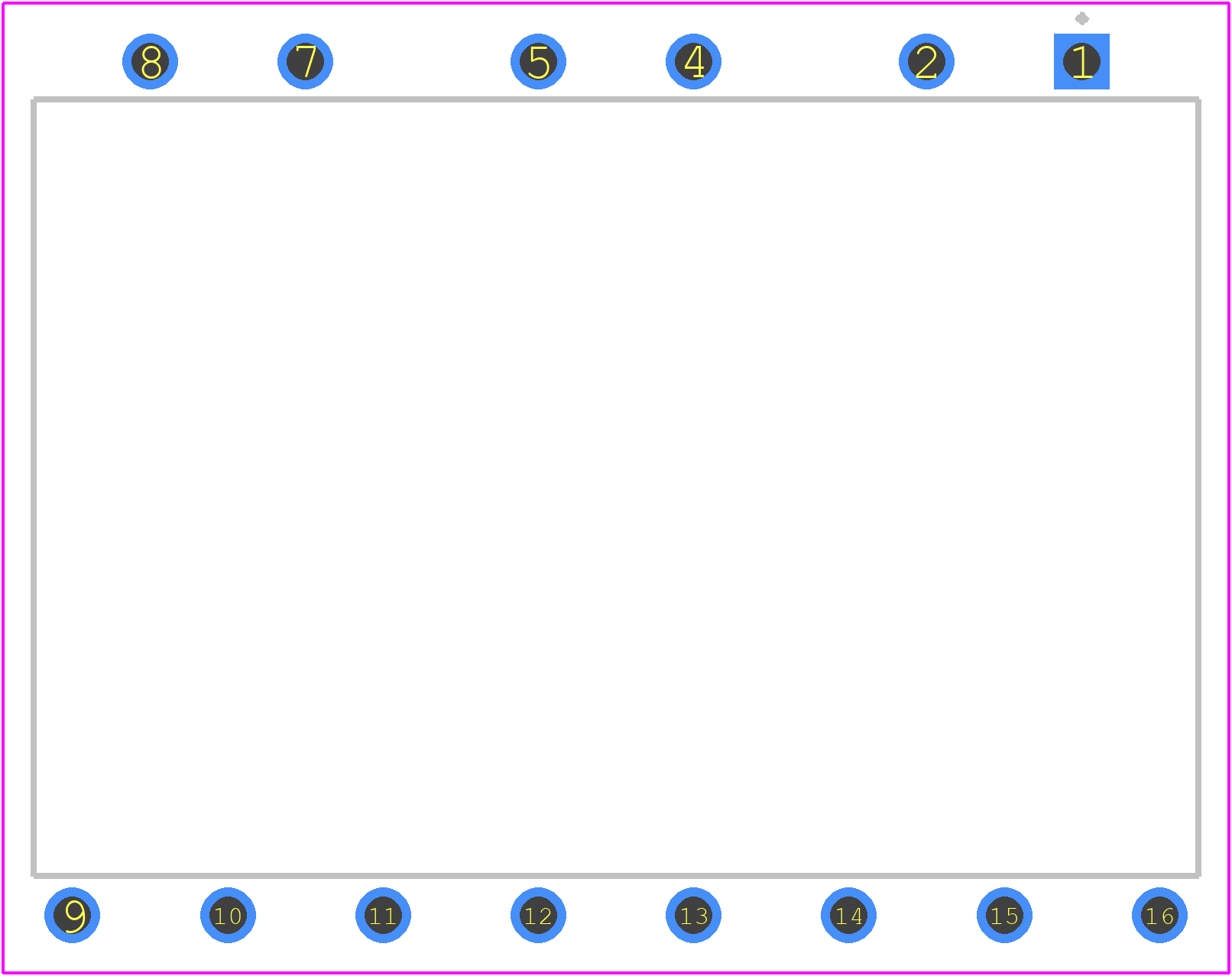

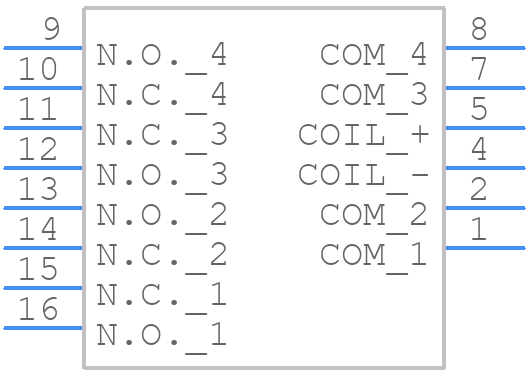

Use the download button to access the NC4D-JP-DC48V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC4D-,
or try a keyword search, such as Power/Signal Relays
