NC4EBD-JP-DC24V footprint, schematic symbol and 3D model by Panasonic

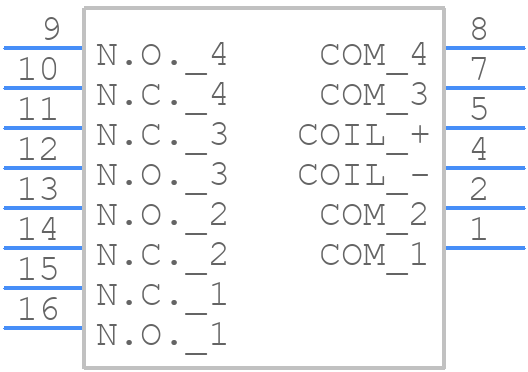

Symbol

click to zoom

PCB Footprints

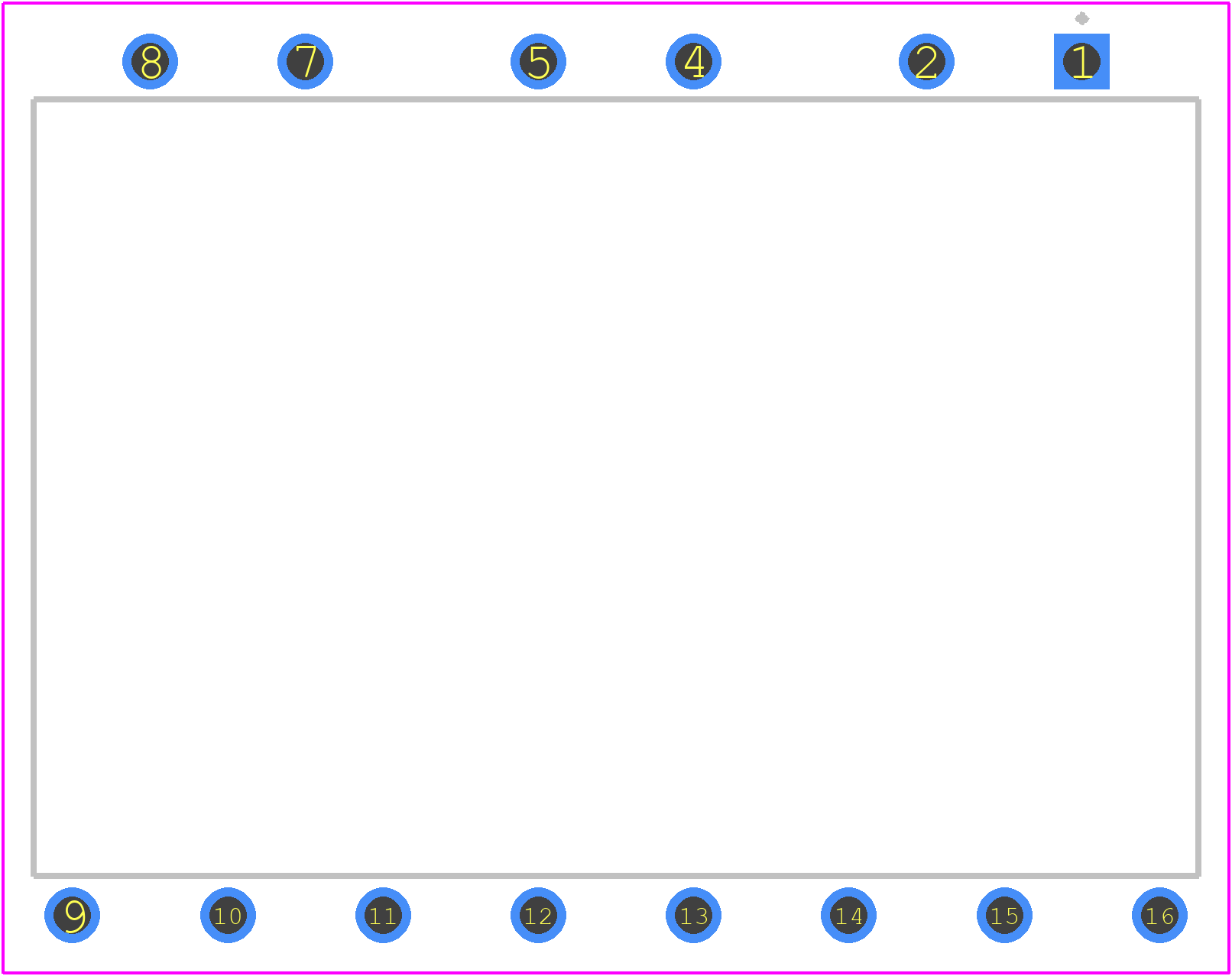

NC4EBD-JP-DC24V - Panasonic PCB footprint - Other - Other - AW884x

click to zoom

3D Models

NC4EBD-JP-DC24V - Panasonic - 3D model - Other - AW884x

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NC4EBD-JP-DC24V
Part Number NC4EBD-JP-DC24V
Manufacturer Panasonic
Pin Count 14
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AW884x
Released Date Jan 21, 2026
Last Modified Date Mar 30, 2026 5:56 PM UTC
Pinout / Pin List Click Here (Member Only)

NC4EBD-JP-DC24V Details

Manufacturer Part Number:
NC4EBD-JP-DC24V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
8
Body Breadth:
25.4 mm
Body Height:
10.9 mm
Body Length or Diameter:
38.1 mm
Coil Current(DC)-Max:
0.03 A
Coil Operate Voltage(DC):
19.2 V
Coil Power:
720 mW
Coil Release Voltage(DC):
2.4 V
Coil Resistance:
800 Ω
Coil Voltage(DC)-Max:
24 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
2A@250VAC
Contact Current(AC)-Max:
2 A
Contact Current(DC)-Max:
5 A
Contact Voltage(AC)-Max:
250 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
20 ms
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
38.1mm x 25.4mm x 10.9mm
Reference Standard:
CSA; UL
Relay Action:
MOMENTARY
Relay Function:
4PDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Surface Mount:
NO
Termination Type:
SOLDER

NC4EBD-JP-DC24V Frequently Asked Questions (FAQs)

The maximum switching frequency of the NC4EBD-JP-DC24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The NC4EBD-JP-DC24V relay is rated for operation up to 85°C. However, the relay's performance and lifespan may be affected at high temperatures. It's recommended to derate the relay's current capacity and consult with Panasonic's application engineers for high-temperature applications.
The NC4EBD-JP-DC24V relay does not have a minimum load requirement. However, it's recommended to ensure that the load is within the relay's rated current capacity to prevent overheating and ensure reliable operation.
The NC4EBD-JP-DC24V relay is designed to withstand moderate vibrations. However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for high-vibration applications.
The expected lifespan of the NC4EBD-JP-DC24V relay is 100,000 to 200,000 cycles, depending on the operating conditions and load. However, the relay's lifespan may be affected by factors such as temperature, humidity, and switching frequency.

Trust Checks

Expert Contribution

System Verified

Community Approved

NC4EBD-JP-DC24V Overview

Use the download button to access the NC4EBD-JP-DC24V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NC4EB, or try a keyword search, such as Power/Signal Relays
