NC4EBD-JP-DC48V footprint, schematic symbol and 3D model by Panasonic

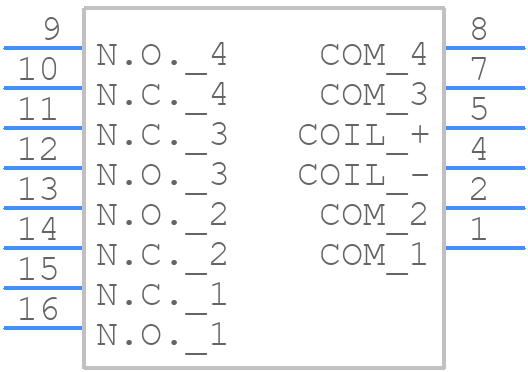

Symbol

click to zoom

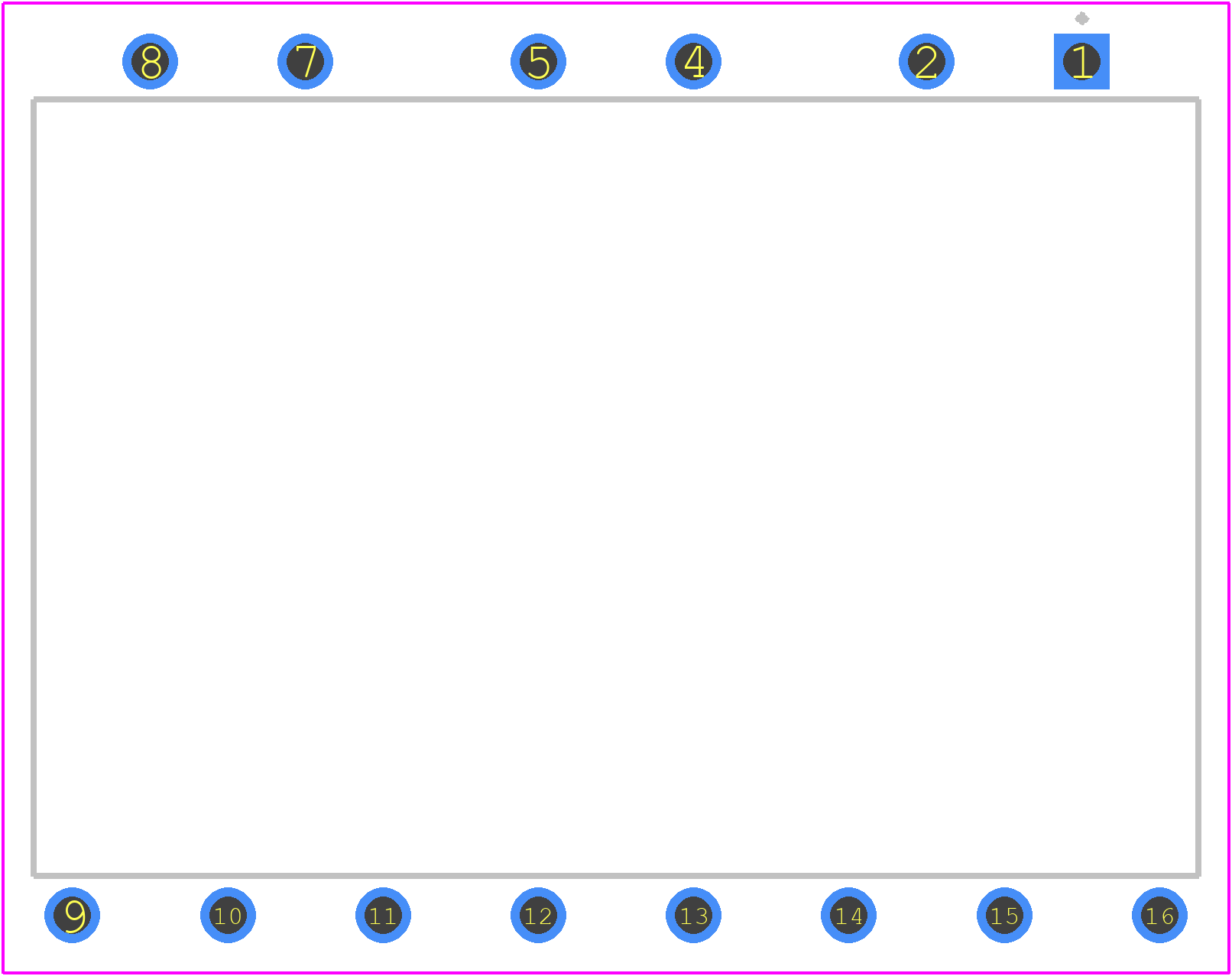

PCB Footprints

NC4EBD-JP-DC48V - Panasonic PCB footprint - Other - Other - AW884x

click to zoom

3D Models

NC4EBD-JP-DC48V - Panasonic - 3D model - Other - AW884x

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NC4EBD-JP-DC48V
Part Number NC4EBD-JP-DC48V
Manufacturer Panasonic
Pin Count 14
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AW884x
Released Date Jan 21, 2026
Last Modified Date Mar 30, 2026 5:56 PM UTC
Pinout / Pin List Click Here (Member Only)

NC4EBD-JP-DC48V Details

Manufacturer Part Number:
NC4EBD-JP-DC48V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
YTEOL:
7
Body Breadth:
25.4 mm
Body Height:
10.9 mm
Body Length or Diameter:
38.1 mm
Coil Current(DC)-Max:
0.015 A
Coil Operate Voltage(DC):
38.4 V
Coil Power:
720 mW
Coil Release Voltage(DC):
4.8 V
Coil Resistance:
3200 Ω
Coil Voltage(DC)-Max:
48 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
2A@250VAC
Contact Current(AC)-Max:
2 A
Contact Current(DC)-Max:
5 A
Contact Voltage(AC)-Max:
250 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
20 ms
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
38.1mm x 25.4mm x 10.9mm
Reference Standard:
CSA; UL
Relay Action:
MOMENTARY
Relay Function:
4PDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Surface Mount:
NO
Termination Type:
SOLDER

NC4EBD-JP-DC48V Frequently Asked Questions (FAQs)

Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To ensure reliable operation in high-temperature environments, it's crucial to consider the relay's power dissipation, thermal resistance, and derating. Panasonic provides thermal derating curves in the datasheet, which can help engineers design a reliable system.
Panasonic recommends using a diode or a Zener diode for coil suppression to prevent back-EMF damage. The datasheet provides a recommended circuit diagram for coil suppression.
The NC4EBD-JP-DC48V relay is not certified for safety-critical applications. If you need a relay for a safety-critical application, you should consider using a relay that meets the relevant safety standards, such as IEC 61508 or UL 508.
Panasonic provides reliability data, including the relay's MTBF (Mean Time Between Failures) and MTTF (Mean Time To Failure), in the datasheet. Engineers can use this data to estimate the relay's lifetime and reliability in their specific application.
