NC4FAH - Neutrik

Description: Connector XLR socket female PIN 4 angled 90° THT black 6A

Download NC4FAH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC4FAH - Neutrik - PCB symbol
click to zoom
PCB Footprints

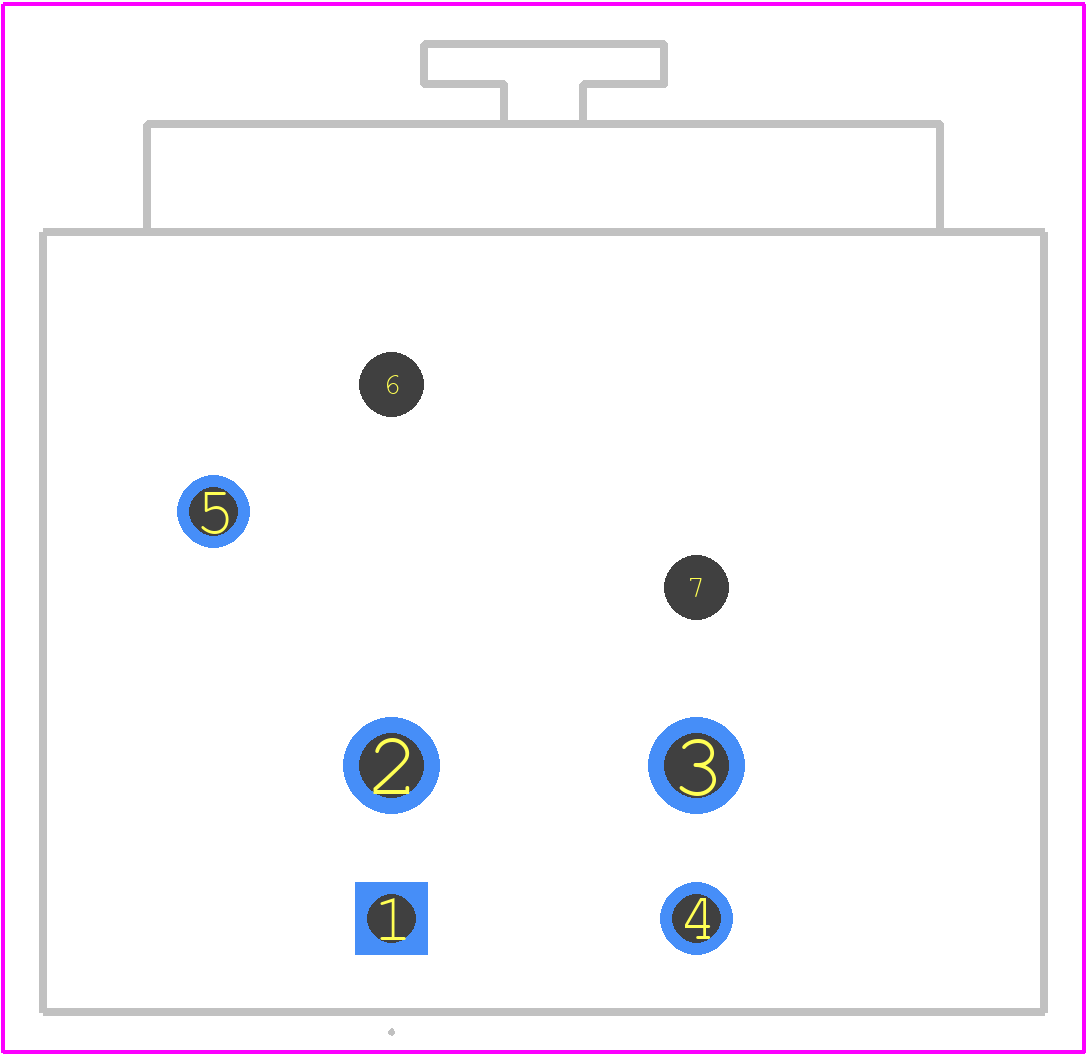

NC4FAH - Neutrik PCB footprint - Other - Other - NC4FAH-1
click to zoom

NC4FAH Details

  • Manufacturer Part Number:

    NC4FAH

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    XLR

NC4FAH Frequently Asked Questions (FAQs)

  • The recommended torque for the NC4FAH connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs).
  • Yes, the NC4FAH connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • No, the NC4FAH connector is not suitable for high-power applications. It is designed for low-power, high-frequency applications such as audio and data transmission.
  • Yes, the NC4FAH connector is compatible with other Neutrik connectors, including the NC3FAH and NC5FAH connectors.
  • The operating temperature range of the NC4FAH connector is -20°C to 75°C (-4°F to 167°F).
