- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NC4FAV
- Part Number NC4FAV
- Manufacturer Neutrik
- Pin Count 5
- Part Category Connector
- Package Category Other

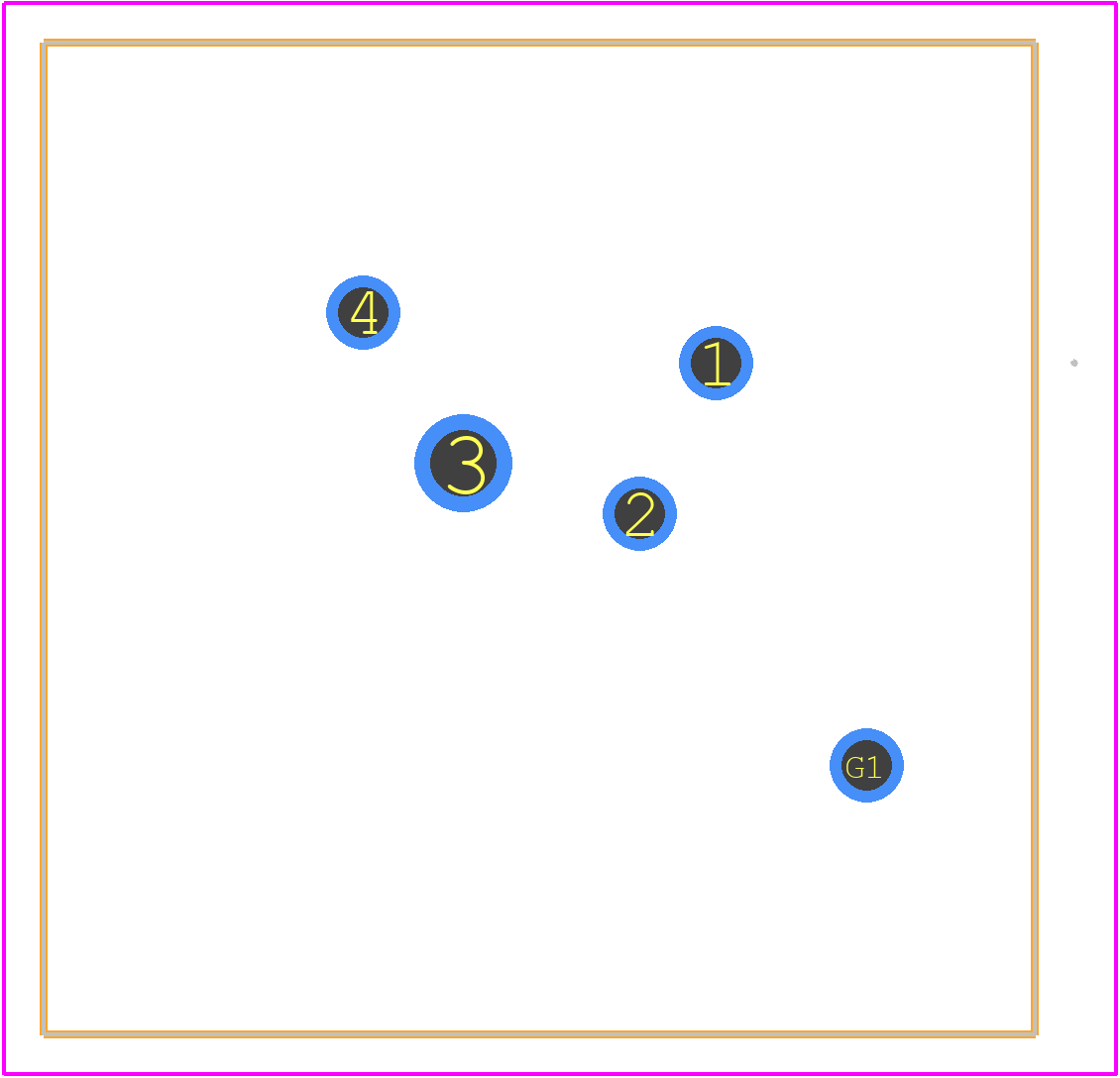

- Footprint Name Other - NC4FAV-3
- Released Date Feb 16, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NC4FAV Details
-
Manufacturer Part Number:
NC4FAV
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
Connector Type:
XLR
NC4FAV Frequently Asked Questions (FAQs)
-
The recommended torque for the NC4FAV connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs). Over-torquing can damage the connector.
-
Yes, the NC4FAV connector is suitable for outdoor use. It has a rugged design and is rated IP67, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
-
No, the NC4FAV connector is not designed for high-power applications. It is rated for a maximum current of 10 A and a maximum voltage of 250 V. For high-power applications, consider using a different connector series.
-
Yes, the NC4FAV connector is compatible with other Neutrik connector series, such as the NC3FAV and NC5FAV. However, it's essential to check the specific compatibility before using them together.
-
Use a soft, dry cloth to wipe away any dirt or debris from the connector. Avoid using harsh chemicals, abrasive materials, or excessive force, which can damage the connector.
Trust Checks
Expert Contribution
System Verified
Community Approved
NC4FAV Overview
Use the download button to access the NC4FAV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC4FA,
or try a keyword search, such as Audio/RCA Connectors
About Neutrik
Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
