NC4FBV - Neutrik

Description: Conn XLR Connector F 4 POS Solder ST Thru-Hole 4 Terminal 1 Port

Download NC4FBV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC4FBV - Neutrik - PCB symbol
click to zoom
PCB Footprints

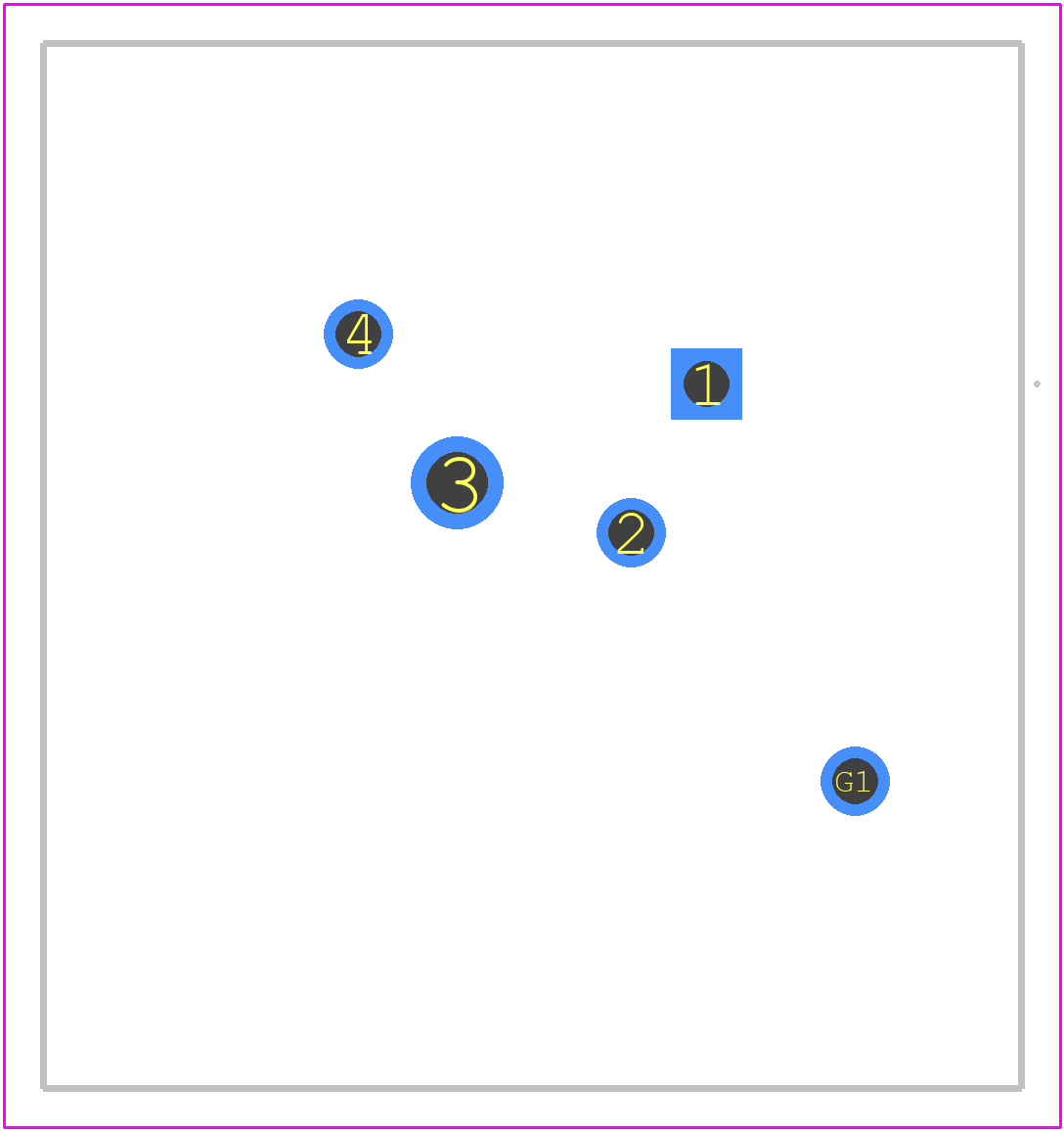

NC4FBV - Neutrik PCB footprint - Other - Other - NC4FBV-1
click to zoom
3D Models
NC4FBV - Neutrik - 3D model - Other - NC4FBV-1
click to zoom

NC4FBV Details

  • Manufacturer Part Number:

    NC4FBV

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Connector Type:

    XLR

NC4FBV Frequently Asked Questions (FAQs)

  • The recommended torque for the NC4FBV connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 1.5 Nm to 2.5 Nm (13.3 in-lbs to 22.1 in-lbs) for the hex nuts.
  • Yes, the NC4FBV connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • The NC4FBV connector is designed for audio and data transmission, not for high-power applications. It's rated for a maximum current of 2 A per contact, so it's not suitable for high-power applications. For high-power applications, consider using a different connector type.
  • Yes, the NC4FBV connector is part of the Neutrik X-series and is compatible with other Neutrik products, such as the NC4MX-BAG and NC4FD-L-1. However, always verify compatibility before using the connector with other Neutrik products.
  • The operating temperature range for the NC4FBV connector is -20°C to +70°C (-4°F to +158°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NC4FBV Overview

Use the download button to access the NC4FBV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC4FB, or try a keyword search, such as Audio/RCA Connectors
