- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NC5MBH-B
- Part Number NC5MBH-B
- Manufacturer Neutrik
- Pin Count 6
- Part Category Connector
- Package Category Other

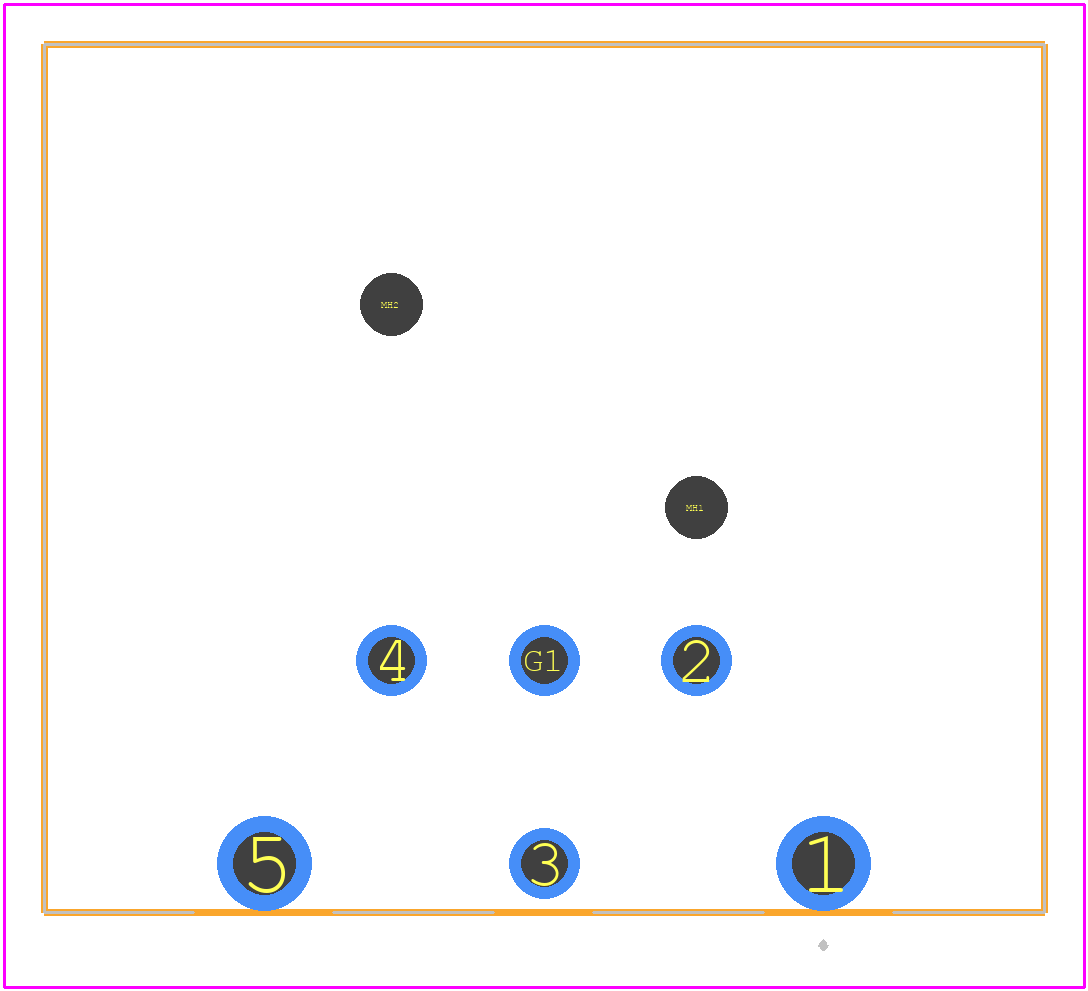

- Footprint Name Other - NC5MBH-B-1
- Released Date Nov 26, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NC5MBH-B Details
-
Manufacturer Part Number:
NC5MBH-B
-
Part Life Cycle Code:
End Of Life
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
YTEOL:
0
-
Connector Type:
XLR
NC5MBH-B Frequently Asked Questions (FAQs)
-
The recommended torque for tightening the NC5MBH-B connector is 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in).
-
Yes, the NC5MBH-B connector is suitable for outdoor use, as it has a rugged design and is rated IP67 for dust and water resistance.
-
No, the NC5MBH-B connector is not designed for high-power applications. It is rated for a maximum current of 10 A and a maximum voltage of 250 V.
-
Yes, the NC5MBH-B connector is compatible with other Neutrik connectors, including the NC5MX-B and NC5FX-B connectors.
-
The operating temperature range of the NC5MBH-B connector is -20°C to 75°C (-4°F to 167°F).
Trust Checks
Expert Contribution
System Verified
Community Approved
NC5MBH-B Overview
Use the download button to access the NC5MBH-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC5MB,
or try a keyword search, such as Audio/RCA Connectors
About Neutrik
Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
