NC6-P108-07 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Terminal Profile Low | Primary Product Color Black | Barrier Strip Style Dual Barrier | Configuration Features: Number of Levels 1 | Number of Rows 1 | Number of Positions 7 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Base Material Copper Alloy | Contact Current Rating (Max) 20 AMP | Dimensions: Wire Size .3 – 3 MMSQ | Wire Size 22 – 12 AWG | Product Length 68.22 MM | Product Length 2.686 INCH | Electrical Characteristics:

Download NC6-P108-07 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC6-P108-07 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

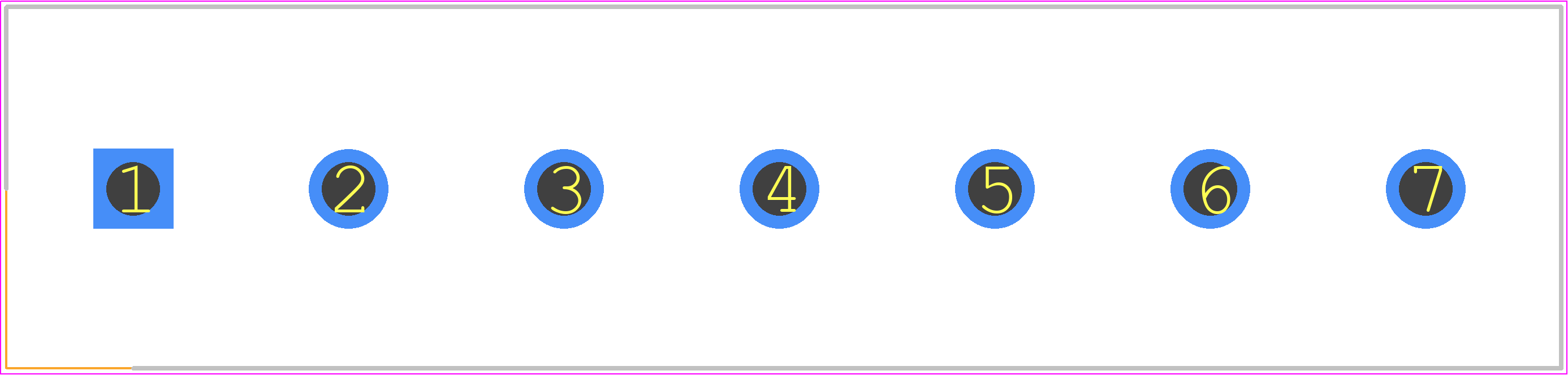

NC6-P108-07 - TE Connectivity PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - NC6-P108-07
click to zoom
3D Models
NC6-P108-07 - TE Connectivity - 3D model - Header, Receptacle - Straight PTH Box - NC6-P108-07
click to zoom

NC6-P108-07 Details

  • Manufacturer Part Number:

    NC6-P108-07

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.77

  • Additional Feature:

    POLYAMIDE, UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG
