NC7SZ74L8X - onsemi

Description: Power down high impedance inputs/output; Overvoltage tolerant inputs facilitate 5V to 3V translation; Space saving US8 surface mount package; High Output Drive; ± 24 mA at 3V VCC; MicroPak™ Pb-Free leadless package; Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC; Broad VCC Operating Range; 1.65V to 5.5V; Patented noise/EMI reduction circuitry implemented

Download NC7SZ74L8X Model

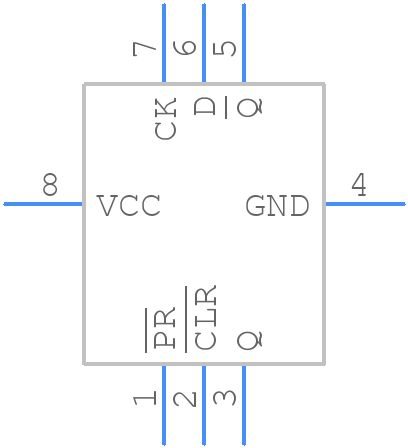

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NC7SZ74L8X - onsemi PCB footprint - Other - Other - UQFN8 1.6X1.6, 0.5P CASE 523AY ISSUE O
click to zoom
3D Models
NC7SZ74L8X - onsemi  - 3D model - Other - UQFN8 1.6X1.6, 0.5P CASE 523AY ISSUE O
click to zoom

NC7SZ74L8X Details

  • Manufacturer Part Number:

    NC7SZ74L8X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-8

  • Manufacturer Package Code:

    523AY

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.3

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    S-XQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    175000000 Hz

  • Max I(ol):

    0.032 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC8,.06SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    13 ns

  • Propagation Delay (tpd):

    13 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    1.6 mm

  • fmax-Min:

    250 MHz

NC7SZ74L8X Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NC7SZ74L8X is 1.65V to 5.5V.
  • Yes, the NC7SZ74L8X is compatible with both 3.3V and 5V logic systems, making it a versatile component for various applications.
  • The maximum clock frequency supported by the NC7SZ74L8X is 250 MHz.
  • Yes, the NC7SZ74L8X has built-in input hysteresis to improve noise immunity and reduce oscillations.
  • Yes, the NC7SZ74L8X is available in a lead-free package, making it suitable for environmentally friendly designs.
