NC7WZ02L8X - onsemi

Description: Power down high impedance inputs/output; Space saving US8 surface mount package; High Output Drive: ±24 mA at 3V VCC; Overvoltage tolerant inputs facilitate 5V to 3V translation; Broad VCC Operating Range: 1.65V to 5.5V; MicroPak™ Pb-Free leadless package; Ultra High Speed: tPD 2.4 ns typ into 50 pF at 5V VCC; Matches the performance of LCX when operated at 3.3V VCC; Patented noise/EMI reduction circuitry implemented

Download NC7WZ02L8X Model

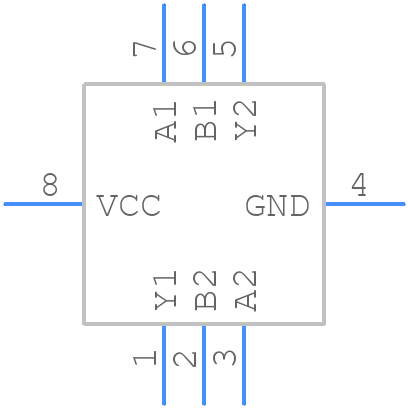

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NC7WZ02L8X - onsemi PCB footprint - Other - Other - UQFN8 1.6X1.6, 0.5P CASE 523AY ISSUE _
click to zoom
3D Models
NC7WZ02L8X - onsemi  - 3D model - Other - UQFN8 1.6X1.6, 0.5P CASE 523AY ISSUE _
click to zoom

NC7WZ02L8X Details

  • Manufacturer Part Number:

    NC7WZ02L8X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-8

  • Manufacturer Package Code:

    523AY

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NOR GATE

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Inputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    LCC8,.06SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5 ns

  • Propagation Delay (tpd):

    10 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

NC7WZ02L8X Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NC7WZ02L8X is 1.65V to 5.5V.
  • Yes, the NC7WZ02L8X is compatible with both 3.3V and 5V logic systems, making it a versatile component for various applications.
  • The NC7WZ02L8X can handle data rates up to 100 Mbps, making it suitable for high-speed applications.
  • Yes, the NC7WZ02L8X has built-in ESD protection, which helps protect the device from damage caused by electrostatic discharge.
  • The typical power consumption of the NC7WZ02L8X is very low, typically in the range of 1-10 μA, making it suitable for battery-powered devices.
