NC7WZ86L8X - onsemi

Description: Patented noise/EMI reduction circuitry implemented; Space saving US8 surface mount package; Overvoltage tolerant inputs facilitate 5V to 3V translation; High Output Drive; ± 24 mA at 3V VCC; MicroPak™ Pb-Free leadless package; Broad VCC Operating Range; 1.65V to 5.5V; Matches the performance of LCX when operated at 3.3V; Power down high impedance inputs/output; Ultra High Speed; tPD 2.9 ns typ into 50 pF at 5V VCC

Download NC7WZ86L8X Model
Schematic
symbols

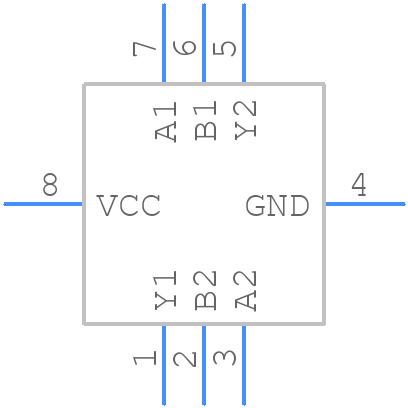

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NC7WZ86L8X - onsemi PCB footprint - Other - Other - NC7WZ86L8X-1
click to zoom
3D Models
NC7WZ86L8X - onsemi  - 3D model - Other - NC7WZ86L8X-1
click to zoom

NC7WZ86L8X Details

  • Manufacturer Part Number:

    NC7WZ86L8X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-8

  • Package Description:

    MICROPAK-8

  • Manufacturer Package Code:

    523AY

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.3

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    S-XQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    XOR GATE

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Inputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC8,.06SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5.9 ns

  • Propagation Delay (tpd):

    13 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

NC7WZ86L8X Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NC7WZ86L8X is 1.65V to 5.5V.
  • To ensure proper power-on and power-off, it is recommended to follow a slow power ramp-up and ramp-down sequence, with a minimum rise and fall time of 1ms.
  • The maximum current that the NC7WZ86L8X can sink or source is 24mA.
  • To handle ESD protection, it is recommended to use a human body model (HBM) of 2kV and a charged device model (CDM) of 1kV.
  • The thermal impedance of the NC7WZ86L8X is 125°C/W for the 8-pin SOIC package.
