Description:High Peak Output Current (+6.5 A/-6.5 A); Short Propagation Delays with Accurate Matching; High Transient & Electromagnetic Immunity; 5 KVrms On-Chip Galvanic Isolation; Wide Bias Voltage Ranges and Input Voltage Range; Active Miller Clamp or Negative Gate Voltage or Split Outputs
A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal design, and consider derating the device's power dissipation. Additionally, ensure that the device is properly soldered and that the PCB is designed to withstand the expected temperatures.
The recommended soldering conditions for the NCD57090DDWR2G are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering temperature profile that follows the JEDEC J-STD-020 standard.
To handle ESD protection during handling and assembly, it's recommended to follow standard ESD precautions, such as using an ESD wrist strap, ESD mat, or ESD bag. Ensure that all equipment and tools are properly grounded, and avoid touching the device's pins or exposed internal components.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to follow the recommended operating conditions to ensure reliable operation and to avoid voiding the device's warranty.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCD57090DDWR2G Overview

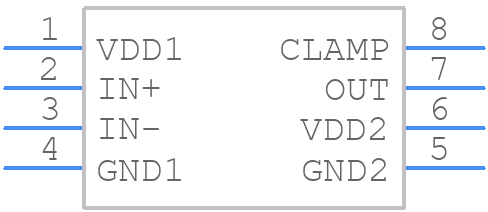

Use the download button to access the NCD57090DDWR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCD57,
or try a keyword search, such as MOSFET Drivers
