Part Image

NCID9211 - onsemi

Description: The only Digital Isolator available that includes insulation reliability that matches optocouplers; DTI (Distance Through Insulation): ≥ 0.5 mm; Maximum Working Insulation Voltage: 2000 Vpeak; Specifications Guaranteed Over 2.5 V to 5.5 V Supply Voltage and −40°C to 125°C Extended Temperature Range; High Speed: ♦ 50 Mbit/s Data Rate (NRZ) ♦ 25 ns Maximum Propagation Delay ♦ 10 ns Maximum Pulse Width Distortion; No insulation material wear out over time up to 1500V, no LED degradation, consistent performance

Download NCID9211 Model

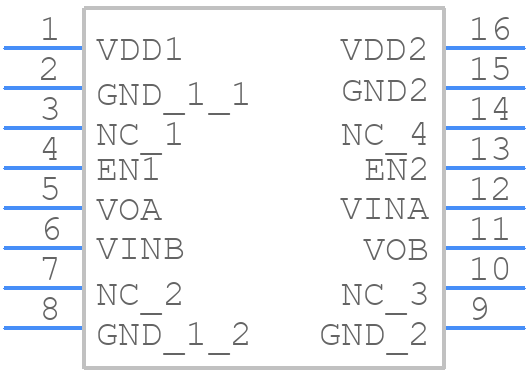

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCID9211 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16 W
click to zoom
3D Models
NCID9211 - onsemi  - 3D model - Small Outline Packages - SOIC16 W
click to zoom

NCID9211 Details

  • Manufacturer Part Number:

    NCID9211

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC16 W

  • Manufacturer Package Code:

    751EN

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-03-09

  • Manufacturer:

    onsemi

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

NCID9211 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
  • Use a thermally conductive material for the heat sink, ensure good airflow, and follow the recommended thermal design guidelines. Also, consider using a temperature sensor to monitor the device temperature.
  • Choose capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. X7R or X5R ceramic capacitors are recommended for their stability and low temperature coefficient.
  • Keep the switching node (SW) away from sensitive analog circuits, use a shielded inductor, and add a common-mode choke to reduce EMI. Also, consider using a Faraday shield or a metal can to enclose the device.
  • Use a clock signal with a frequency between 100 kHz and 1 MHz, and ensure it is synchronized with the internal clock using the SYNC pin. Also, consider using a clock buffer or a clock generator to ensure a clean clock signal.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCID9211 Overview

Use the download button to access the NCID9211 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCID9, or try a keyword search, such as Other Interface ICs
