NCID9410 - onsemi

Description: The only Digital Isolator available that includes insulation reliability that matches optocouplers; DTI (Distance Through Insulation): ≥ 0.5 mm; Maximum Working Insulation Voltage: 2000 Vpeak; Specifications Guaranteed Over 2.5 V to 5.5 V Supply Voltage and −40°C to 125°C Extended Temperature Range; No insulation material wear out over time up to 1500V, no LED degradation, consistent performance from device-to-device; 100 KV/µs Minimum Common Mode Rejection; Full Duplex, Bi−directional Communication; 8 mm C

Download NCID9410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

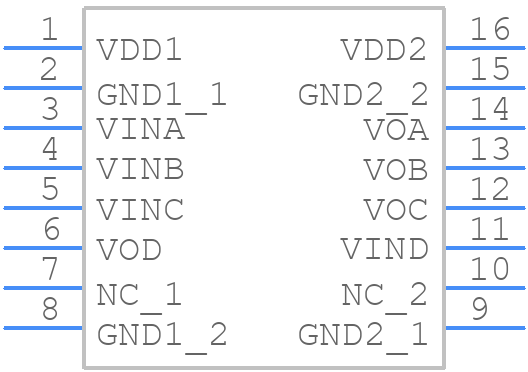

NCID9410 - onsemi - PCB symbol
click to zoom
PCB Footprints
NCID9410 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16 W CASE 751EN ISSUE A
click to zoom
3D Models
NCID9410 - onsemi - 3D model - Small Outline Packages - SOIC16 W CASE 751EN ISSUE A
click to zoom

NCID9410 Details

  • Manufacturer Part Number:

    NCID9410

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC16 W

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751EN

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

NCID9410 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Follow the recommended operating conditions, ensure proper thermal management, and use a reliable power supply. Also, consider using a thermal pad or heat sink to dissipate heat.
  • The maximum data transfer rate is 10 Gbps, but this depends on the specific application, PCB layout, and signal integrity. In practice, a data transfer rate of up to 8 Gbps is commonly achieved.
  • Use oscilloscopes and logic analyzers to debug the signal integrity and data transmission. Check the PCB layout, power supply, and termination resistors for any issues. Consult the onsemi application notes and technical support for guidance.
  • No, the NCID9410 is designed to meet the PCI Express specification and should only be used in compliant applications. Using it in a non-compliant application may result in unreliable operation or damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCID9410 Overview

Use the download button to access the NCID9410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCID9, or try a keyword search, such as Other Interface ICs
